KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-180DNL
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
ORIENTATION :
Vertical
PERFORMANCE :
Cat5e
LED :
Green / Yellow
Position :
8
Description

180 degree 10/100base top entry RJ45 Transmitter Filter, Rj45 Lan Jack with internal magnetics

KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mmKRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mmKRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm

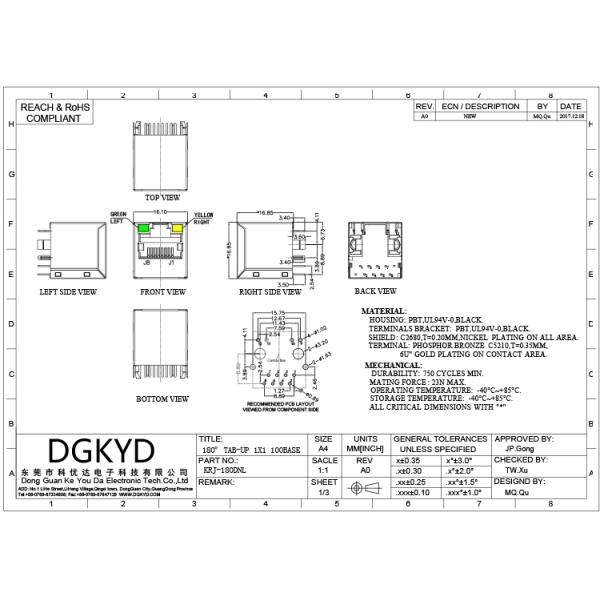

Material specifications:

  • Plastic core:Glass fier filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

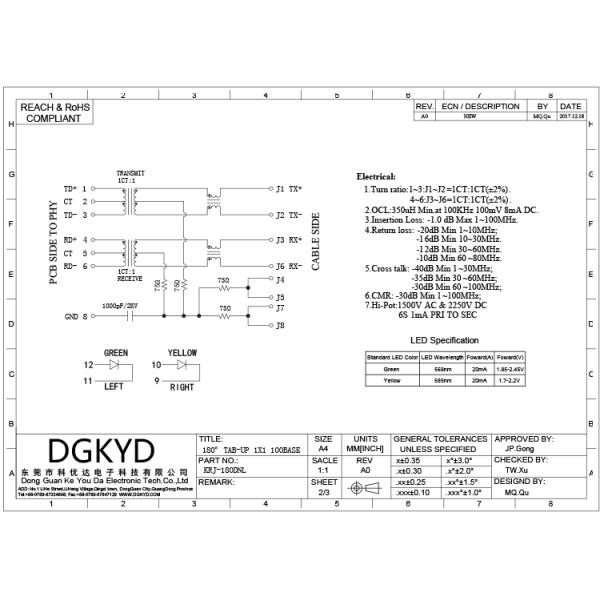

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
