Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-301EGOGOENL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Application: :
Ethernet
Speed: :
10/100/1000BASE-T
PCB Mount: :
Right Angle Thru-Hole
Standard: :
IEEE802.3ab
Encapsulation method :
Single In-line Package
Operating temperature :
-40°C~+85°C
Gold plating on contact pins :
6U
Plastic housing material :
Black PBT
PCB Mount Style :
DIP
Component Type :
PCB Jack
Shield :
phosphor copper nickel plating
Description

Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip

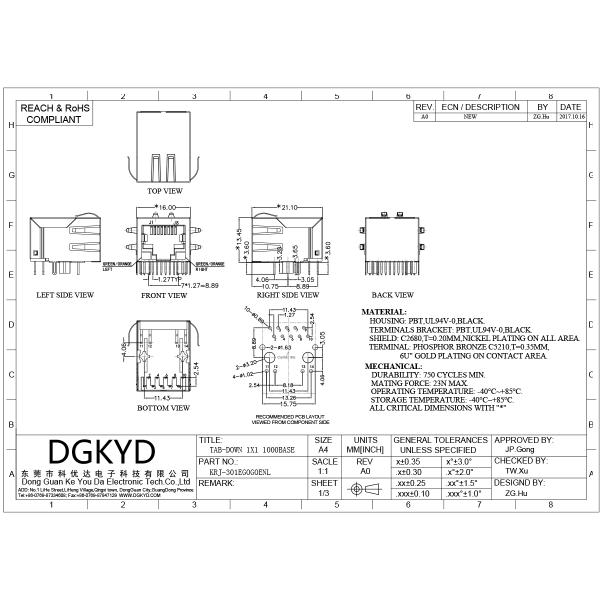

Product Specification Document

KRJ-301EGOGOENL.pdf

Part Number KRJ-301EGOGOENL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Green/Orange-Green/Orange Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  1X1 Ports Number of Positions  10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip

Options include:

  • Single, Double or Quad sockets
  • Choice of with or without LEDs
  • Tab Up, Tab Down, Low Profile, Long Body, and Vertical packages
  • Standard (0 to 70°C) or Extended (-40 to +85°C) Temperature Ranges
