Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-099YGNL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Speed :
Cat5
Latch :
Tab up
Mount Style :
PCB mount
Length :
25.4mm
Description

100BASE single port tab up RJ45 PCB Connector Transformer for Network connection

  • 10/100Base-Tx RJ45 single port 1X1 right angle with LEDS

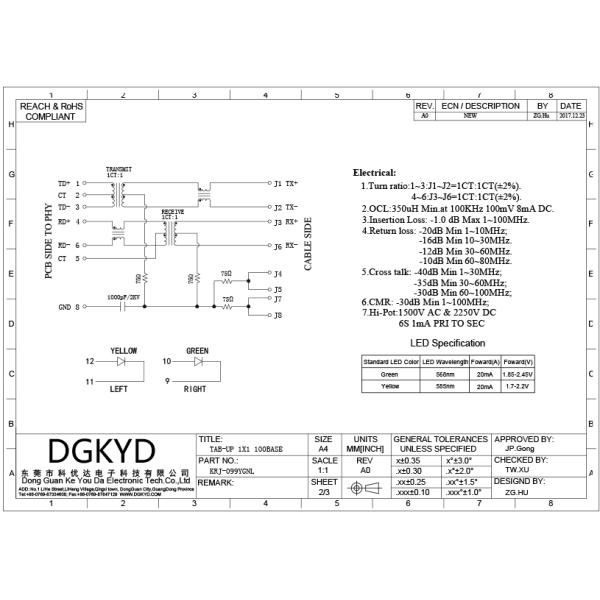

  • 1X1 Tab-up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

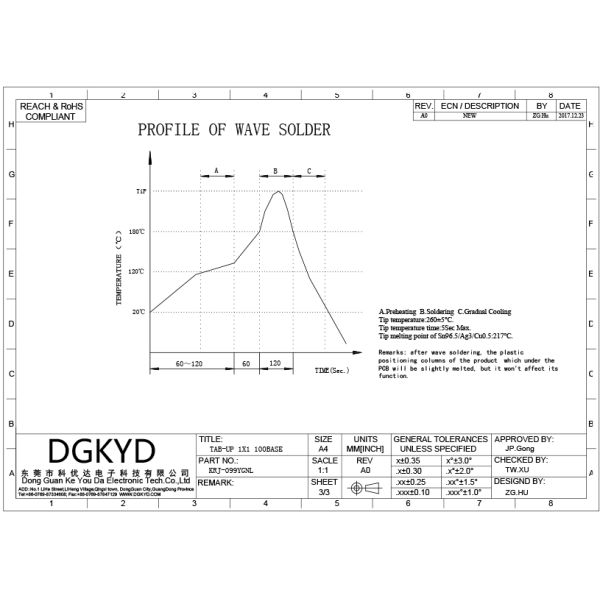

  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range : -40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant

100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection100BASE single port Tab up RJ45 PCB Connector with Transformer for network connection

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
