Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-H017WDENL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Performance Category :
Cat5
Contact Resistance: :
50mΩ
Operating Temperature Range: :
-40℃~+85℃
Durability: :
750 Cycle
Description

Single Port Megabit ethernet RJ45 PCB Connector , RJ45 Shielded Plug 100BASE

Single Port Megabit ethernet RJ45 PCB Connector , RJ45 Shielded Plug 100BASESingle Port Megabit ethernet RJ45 PCB Connector , RJ45 Shielded Plug 100BASESingle Port Megabit ethernet RJ45 PCB Connector , RJ45 Shielded Plug 100BASE

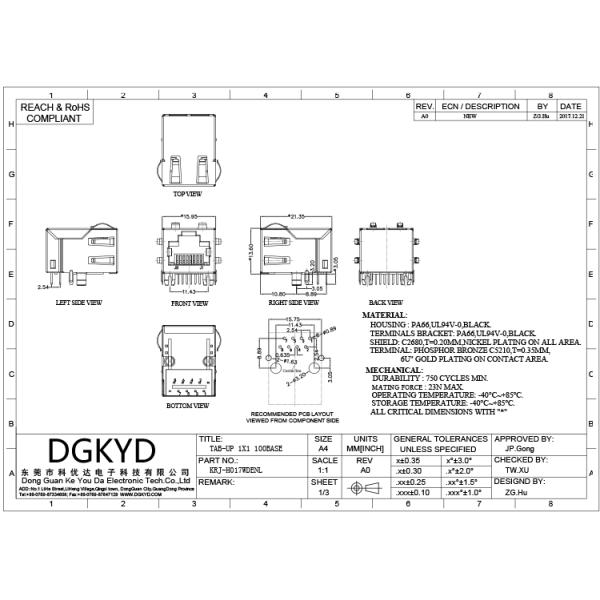

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA, DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
