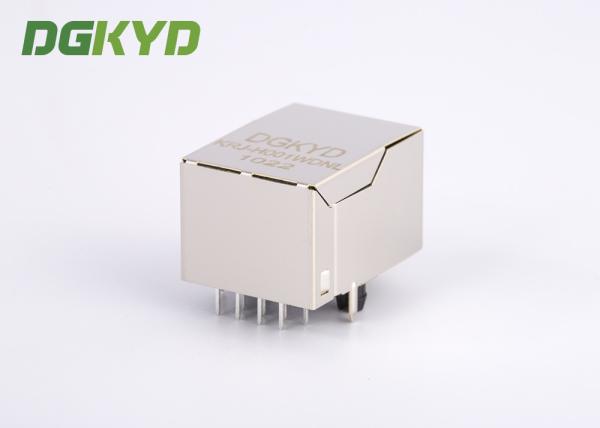

Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-H001WDNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Feature :
High performance
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Application :
lan,bridge,PC,router,usb hub network rj45 and all ethernet devices
Product Name :
RJ45connector
Speed :
cat5
Type :
Single port
Description

Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL

Part Number KRJ-H001WDNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter With filter LED Option No LED
LED Color N/A Panel Stops Without Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit

 Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

► Product Drawing

Tab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNLTab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNLTab up shielded 100 base tx rj45 connector pcb mount with magnetics , KRJ-H001WDNL
