Specifications
Brand Name :
DGKYD
Model Number :
DGKYD511B049GWA8P
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 with Integrated transformer
Connector Style :
RJ45 Female Jack
Shielded :
Unshielded
Speed :
100 Base-tx
Status Indicator :
LED
Latch Orientation :
Top Entry
Description

Unshield PoE RJ45 magnetic jack with 100 Base-TX transformer , RJ45 Female Jack
ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP No
PCB MOUNT ANGLE VERTICAL
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION YES
LATCH ORIENTATION TOP ENTRY
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

► Product Features

  • Extensive temperature range between -40 to +85 degrees C
  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

MECHANICAL

Durability: 750 Cycle

SOLDER ABILITY

Recommended Wave Soldering Temperature: 260℃

Recommended PCB Thickness: 1.6mm

PCB Retention Pre-solder: 1LB Min.

PCB Retention Post-solder: 10LB Min.

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

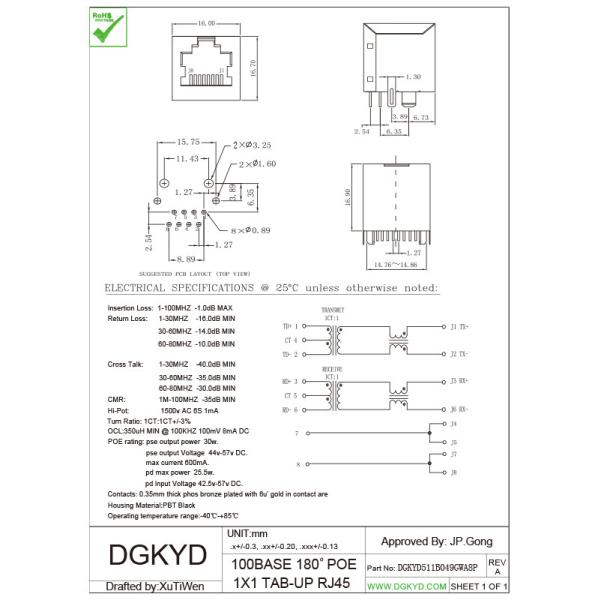

► Product Drawing

Unshield PoE RJ45 magnetic jack with 100 Base-TX transformer , RJ45 Female Jack
