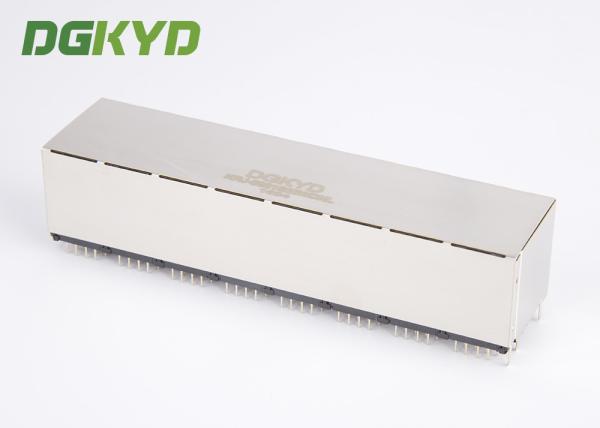

Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-5921S28WDNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Jack Type  :
RJ45 Jack
Transformer :
Without transformer
Shielded  :
yes
PCB mount :
Yes
Performance :
10/100/1000 BASE-TX
Connector Type  :
Connector Assembly
Description

Shield 2X8 port stacked Rj45 connector combo dual deck 16 ports ethernet scoket

Configuration Features

  • Port Configuration  Multiple

  • Jack Configuration  2 x 8

  • Number of Positions  8

Body Features

  • LED Color (Top Right)  n/a

  • Color  Black

  • Shield Material  Coppor alloy

  • LED Color (Top Left)  n/a

Contact Features

  • Solder Tail Contact Plating Material  Tin over Nickel

  • Contact Mating Area Plating Thickness  0.6 µin 

  • Contact Base Material  Phosphor Bronze

  • Number of Contacts Loaded  8

  • Contact Mating Area Plating Material  Gold

Termination Features

  • Termination Method to PC Board  Through Hole - Press-Fit

Mechanical Attachment

  • Panel Mount Retention  Without

  • PCB Mounting Style  Through Hole

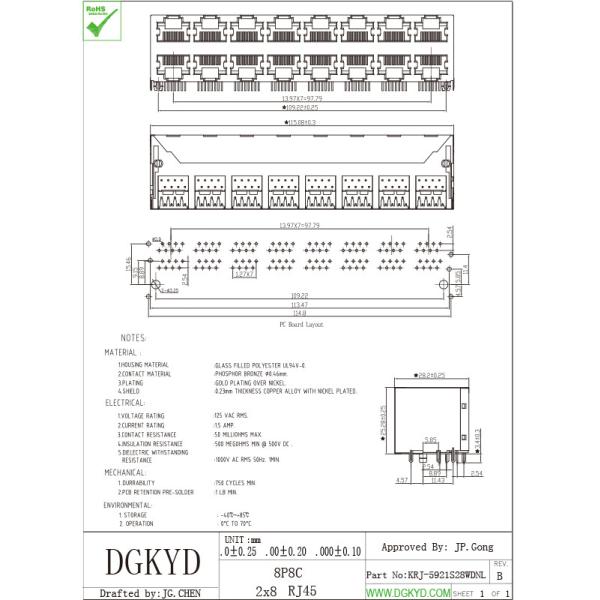

► Product Drawing

Shield 2X8 Port Stacked RJ45 Multiple Port Connectors Combo Dual Deck 16 Ports Ethernet Scoket
