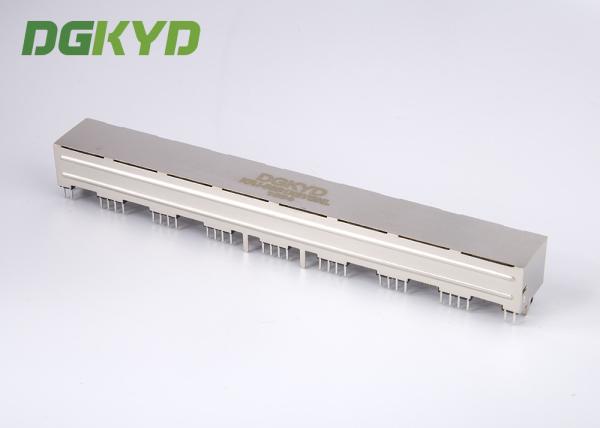

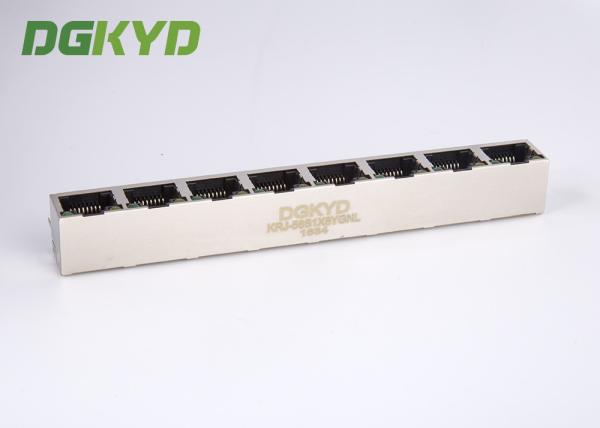

Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Shield Tab Up 1x8 Port Combo PCB Mount RJ45 Multiple Port Connectors With Y/G LED
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-56S1X8YGNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 without transformer
Port Configuration :
1x8
Connector Style :
Jack
Gender :
Female
Shielded :
yes
Speed :
10/100/100 base-tx
Status Indicator :
Y/G LED
Latch Orientation :
TAB UP
Description

Customized Shield tab up 1x8 port combo PCB mount RJ45 ethernet jack with Y/G LED
ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40℃ to +85℃
SHIELD PLATING MATERIAL NICKEL
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X8
NUMBER OF CONTACTS 8
LED OPTION Y/G LED
LATCH ORIENTATION LATCH UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity
