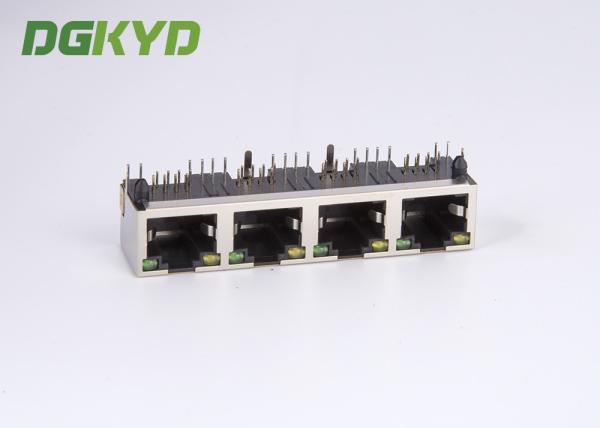

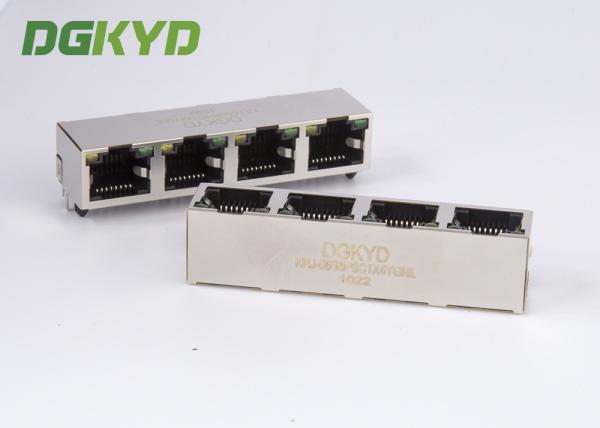

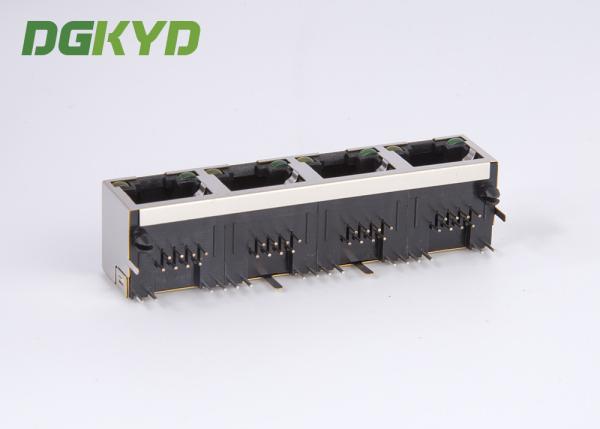

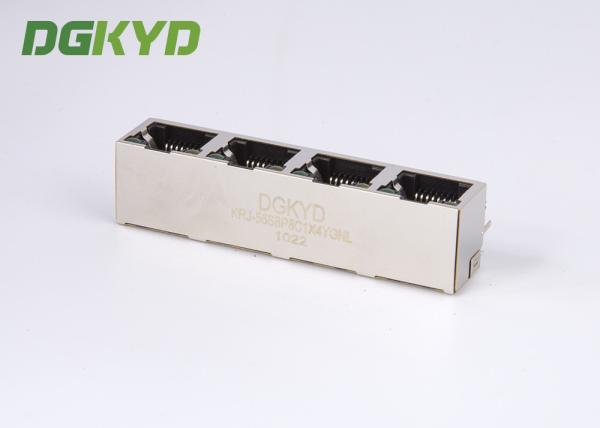

Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-56S8P8C1X4YGNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
LED :
Y/G LEDs
Feature :
High performance with magnetics and LED
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Application :
lan,bridge,PC,router,usb hub network rj45 and all ethernet devices
Gender :
Female jack
Product Name :
RJ45 Ethernet connector
Description

Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs

Part Number KRJ-56S8P8C1X4YGNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without internal filter LED Option With LED
LED Color Green/Yellow Panel Stops Without Panel Stops
Shielded metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  4 port Number of Positions  8
Jack Configuration 1 x 4 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 0.6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit

 Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black

Specifications / Design Features
• Cable and jack connector system designed for freq. up
to & beyond 1,000 MHz
• Interface compatible with Nexans GG45
Connector System
• Patented plug design allows for port density equivalent
to standard RJ45 connectors
• Plug design includes integral slim line strain relief with
built in latch protection
• Uses data pair isolation technology to achieve high
frequency performance
• Look and feel of an RJ45 connector but with beyond
10GBase-T performance capabilities

► Product Drawing

Metal shielded quad port rj45 keystone connector without transformer, Y/G LEDs
