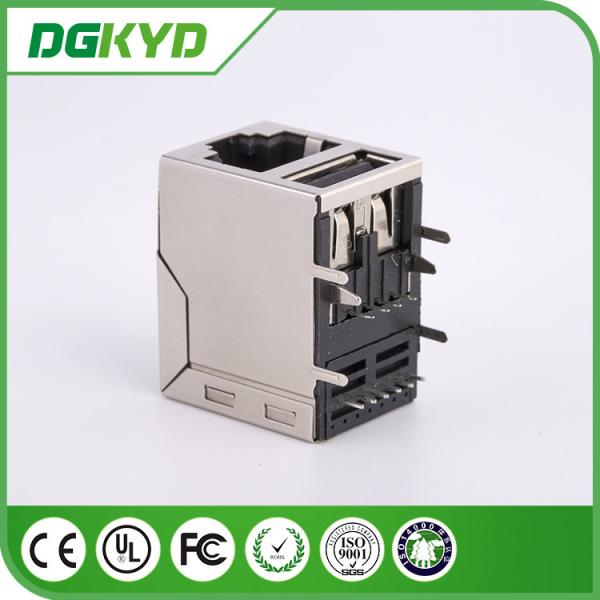

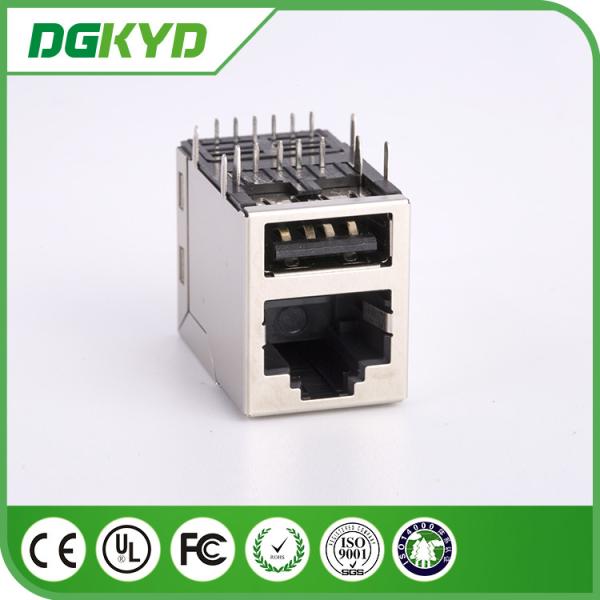

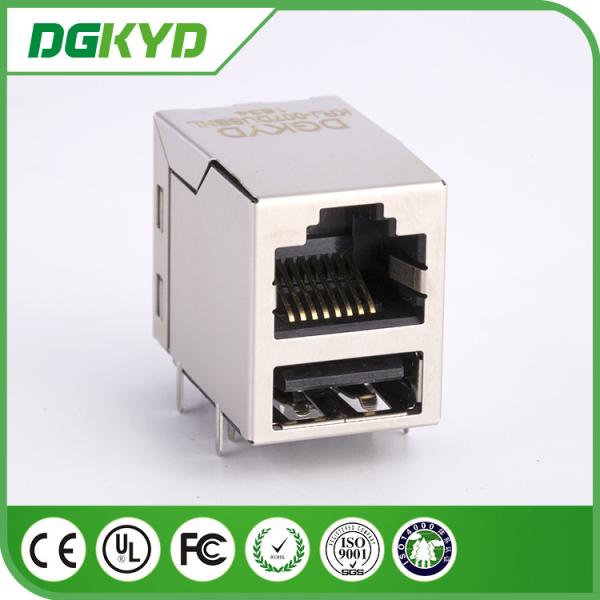

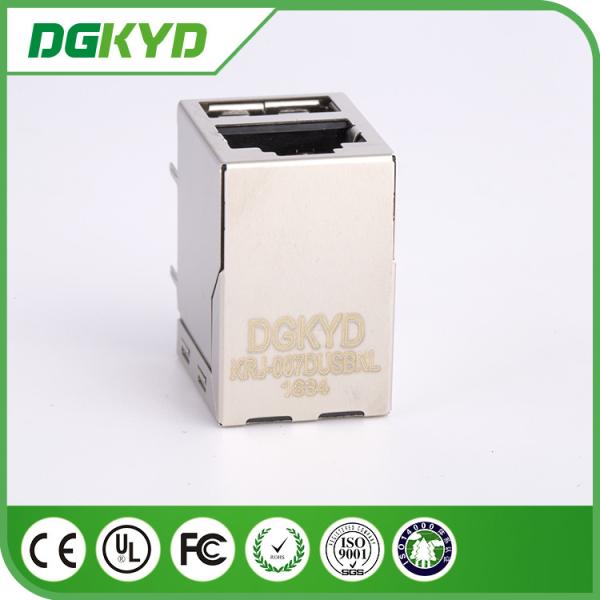

Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Single port Integrated magnetic rj45 USB jack with 10/100base transformer
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-007DWWUSBNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Price :
Please contact us to get the latest price.
Description

Single port Integrated rj45 Modular jack with 10/100base transformer and without led

1x1 Tab Up RJ45 With Single USB and w/o led KRJ-007DWWUSBNL

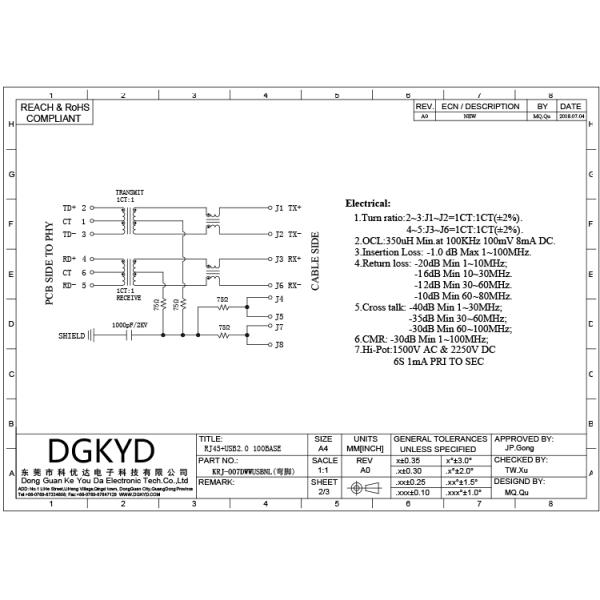

Electrical Specifications:

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

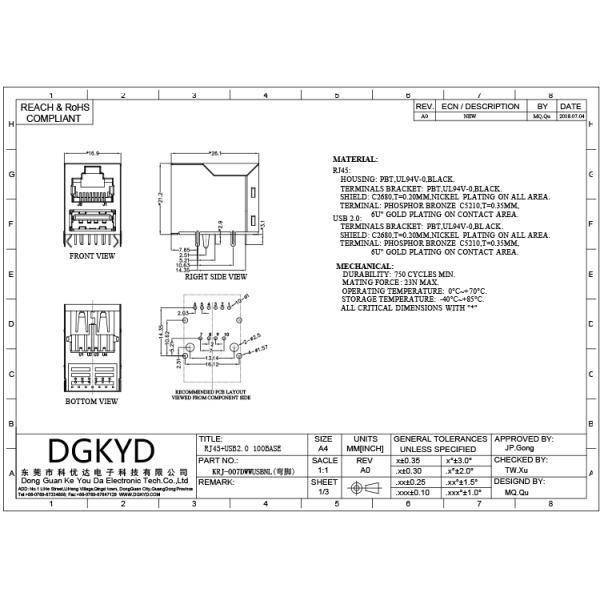

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
