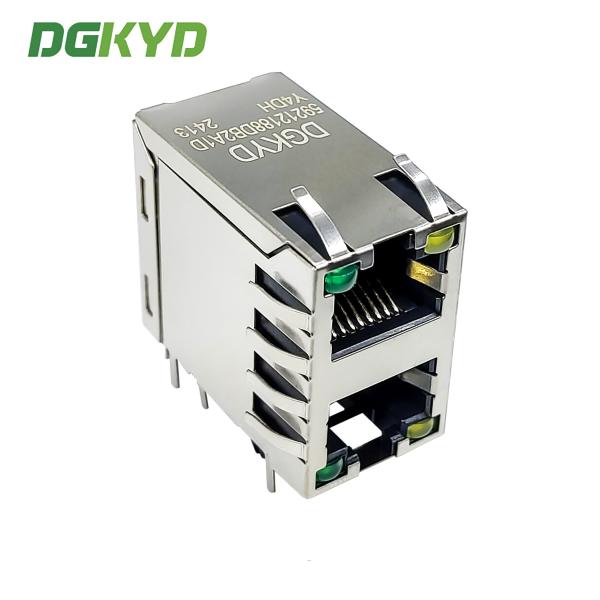

RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD59212188DB2A1DY4DH
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 without transformer
Port Configuration :
Single
Connector Style :
Jack
Gender :
Female
Shielded :
Metal Shielded
Status Indicator :
Green/Yellow
Latch Orientation :
TAB DOWN/UP
gold-plating :
6U
Description

RJ45 multi port connector 2X1 8P8C with light strip shielding DGKYD59212188DB2A1DY4DH network port socket

Product Specification Document

DGKYD59211188GWA1DB5.pdf

Why Choose Us

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Parameters

Part Number DGKYD59212188DB2A1DY4DH Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN/UP
Filter Without Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  double Ports Number of Positions  8
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
