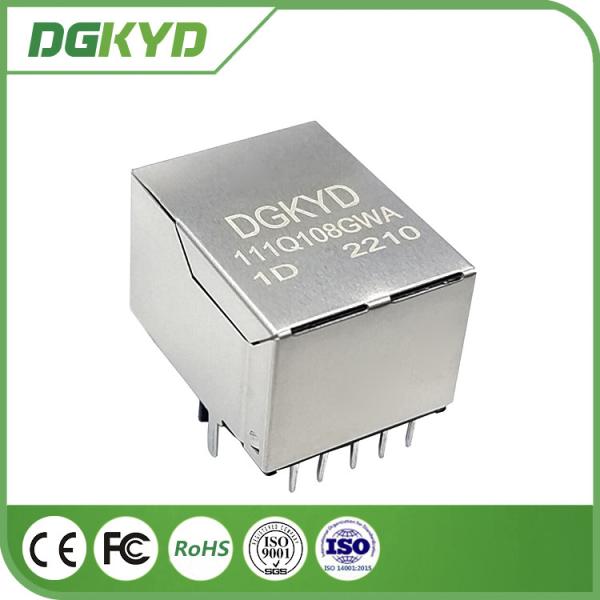

10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD111Q108GWA1D
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiation
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
560Tray in Carton
Product type :
RJ45 1000M Connector
Encapsulation method :
doubleIn-line Package
PCB Mount Style :
DIP
Shape :
rectangle
Shield :
brass
Number of Positions/Contacts :
10p8c (RJ45, Ethernet)
Number of Ports :
Tap down
Dimension (mm) :
16* 21.1*13.45mm
Contact Plating :
6u Glod Plating
Operating temperature :
- 40 ℃ ~ 85 ℃
Storage temperature :
- 40 ℃ ~ 85 ℃
Description

Single Port RJ45 Connector 10/100/1000 Base-T 10P8C RJ45 Magnetic Jacks Network Connector Without Led

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number

DGKYD111Q108GWA1D

 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Multiple Ports Number of Positions  10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED10/100/1000 Base-T 10P8C Single Port RJ45 Magnetic Jack Without LED
