Specifications
Brand Name :
DGKYD
Model Number :
DGKYD511B084AB1A8D
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 with transformer
Connector Style :
RJ45 female Jack
Shielded :
Metal Shielded
Speed :
cat5e
Status Indicator :
LED
Latch Orientation :
Top Entry
Description

DGKYD511B084AB1A8D Vertical RJ45 Transformer 100Mbps Integrated Filter Crystal Head Up Network Interface

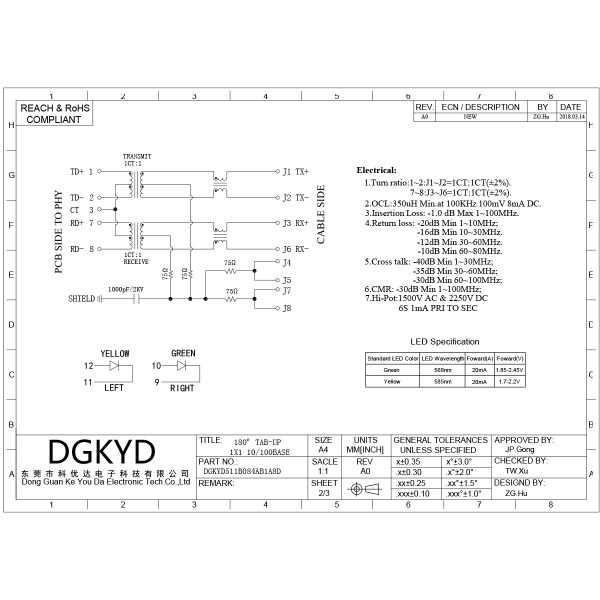

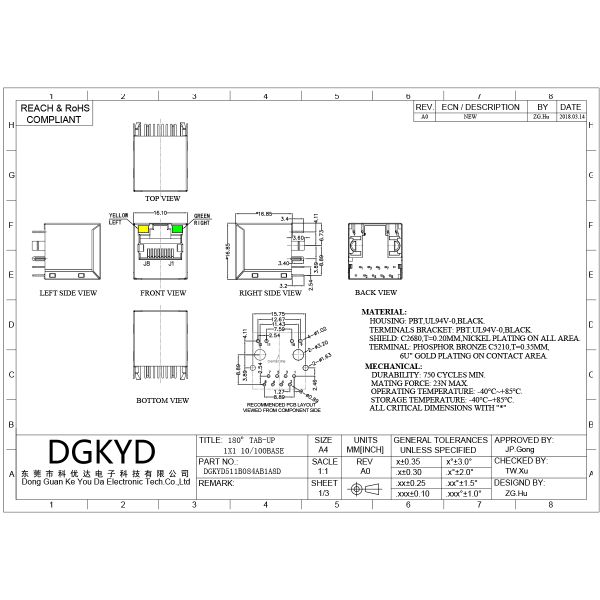

Product Specification Document

DGKYD511B084AB1A8D.pdf
ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP No
PCB MOUNT ANGLE VERTICAL
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION YES
LATCH ORIENTATION TOP ENTRY
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

► Product Features

MECHANICAL

Housing Material: Glass Filled Polyester or High Temp. UL94V-0.

Contact Material: Phosphor Bronze t=0.35mm

Plating: Contact area Selective Gold Plating.

　　　　Tails-Plated Tin Plating over Nickel

　　　　Gold Plating over Nickel.

Operating Life: 750 Cycles Min.

PCB Retention Pre-Solder: 1 LB Min.

PCB Retention Post-Solder: 10 LBS Min.

LED Size: 3.2*2.0*4.0*P=2.29 mm

ENVIRONMENTAL

Storage Temperature: -40℃ to +85℃

Operation Temperature: -40℃ to +85℃

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity
