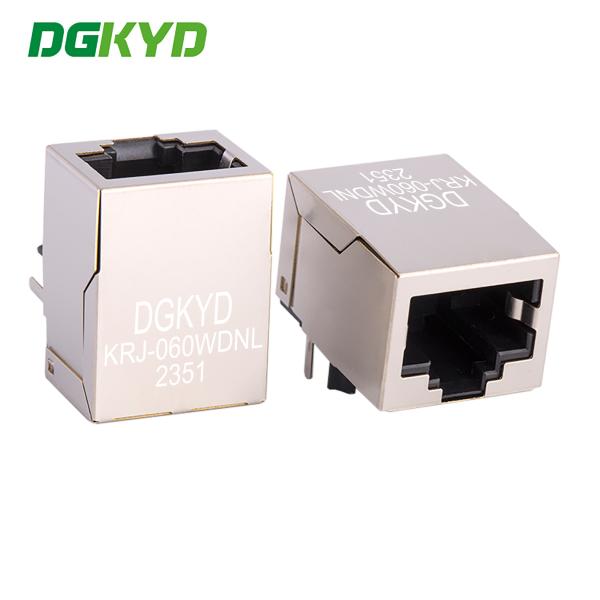

KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
KRJ-060WDNL RJ45 Power Grid Interface Connector With Filter Socket Interface Network Communication
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-060WDNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
LED :
NONE
Shielded :
Yes
Grounding to Panel :
Yes
Termination Interface: Style :
Through Hole
Current - Maximum per Contact :
1.0A
Performance Category :
5,5E
Description

KRJ-060WDNL RJ45 high-quality power grid interface connector with filter socket interface network communication

Product Specification Document

KRJ-060WDNL.pdf




Parameters

Part Number KRJ-060WDNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Descriptions:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Rohs compliant
  • Length:21.3mm

LED Specifications:

Emitting
color

Dominant wavelength(nm)
(min/max)

Forward voltage
(v)

Forward current
(A)

Type

Green

570-575

1.8-2.4

20mA

Squareness

Yellow

585-590

1.8-2.4

20mA

Squareness
