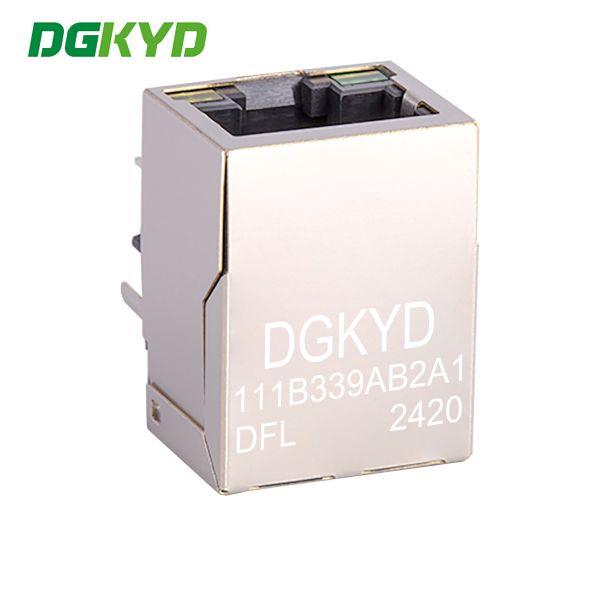

90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
90 Degree Direct Insertion RJ45 Connector Lightning Protection With Light Shielding Interface DGKYD111B339AB2A1DFL
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD111B339AB2A1DFL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
Cat 5 / 5e
OEM/ODM :
yes
Type :
RJ45 jack
Product Name :
RJ45 Modular Jack
Mount :
PCB mount
LED Color :
L-Green/R-Yellow
Performance Speed :
100M BASE-TX
Contact Mating Area Plating Material  :
Gold 6u Microinch
Shielded :
yes
Description

90 degree direct insertion RJ45 connector lightning protection with light shielding interface DGKYD111B339AB2A1DFL

Product Specification Document
DGKYD111B339AB2A1DFL.pdf

Paramters

Part Number DGKYD111B339AB2A1DFL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With internal Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 100M BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Singer port Number of Positions  8
Jack Configuration 1X 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Descriptions:

  • 1X1 90 degree 10/100Base-Tx RJ45 single port with shielded
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8

Material specifications:

  • Plastic core:Glass fiber filler PBT White(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT White(UL94V-0)

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
