Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD112Q285AA2A1DA2 2.5G
Certification :
RoHS/CE/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs per day
Delivery Time :
7-14days
Packaging Details :
1080pcs/carton
Product Name :
RJ45 Ethernet Connector
Number of Ports :
Single Port
Clamp direction :
TAB-DOWN
Integrated transformer :
2.5G
PCB Mount Style :
DIP
Description

2.5G Dual Link RJ45 Network Connector High Performance Band Filter

Surface treatment

Texture,Plating,Painting,Powder coating,Anodization,Ball blasting

Paramters

Part Number DGKYD112Q285AA2A1DA(2.5G) Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 2.5G BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Double Port Number of Positions  10
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

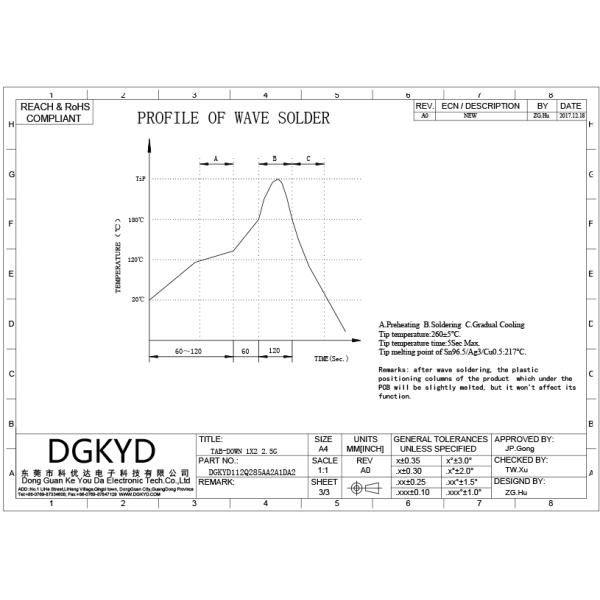

Drawing

Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter

Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter

Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter

Pictures

Waterproof Dual Link 2.5G RJ45 Network Connector Band Filter

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
