8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
8p8c Crystal Head Socket Single Port Rj45 Connector jack
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD60S1188AB1A6DY1
Certification :
RoHS/CE/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000pcs per day
Delivery Time :
7-14days
Packaging Details :
Tray in Carton
Product Name :
Rj45 Connector Jack
Latch :
Tab up
Application :
PC,router,usb hub network rj45 etc.
Gender :
Female
Transformer :
Without transformer
Connector Style :
Jack
Description

Single port rj45 connector 8p8c crystal head socket

Application

NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK

Paramters

Part Number DGKYD60S1188JB1A6DY1 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without Filter LED Option With LED
LED Color L-Yellow / R-Green Panel Stops Without Panel Stops
Shielded With metal shield Applies To  Printed Circuit Board
Port Configuration  Single Port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

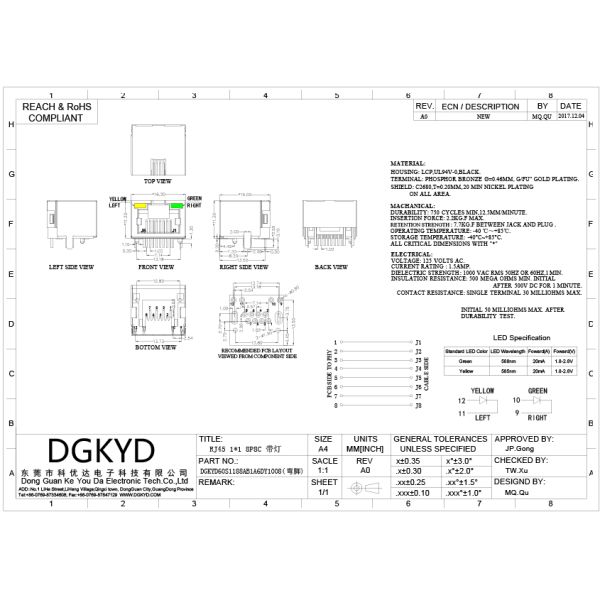

Drawing

8p8c Crystal Head Socket Single Port Rj45 Connector jack

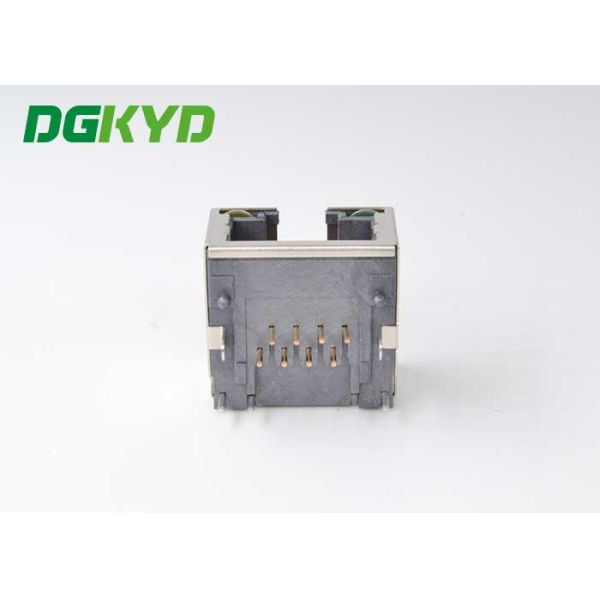

Pictures

8p8c Crystal Head Socket Single Port Rj45 Connector jack

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
