1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD112Q060DB2A1D
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiation
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
560Tray in Carton
Product type :
RJ45
Encapsulation method :
doubleIn-line Package
PCB Mount Style :
DIP
Shape :
rectangle
Shield :
brass
Number of Positions/Contacts :
8p12c (RJ45, Ethernet)
Number of Ports :
Tap down
Dimension (mm) :
30.8* 21.1*13.55
Contact Plating :
6u Glod Plating
Operating temperature :
- 40 ℃ ~ 85 ℃
Storage temperature :
- 40 ℃ ~ 85 ℃
Description

1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel

RJ45 Gigabit Ethernet filter 1X2 multi-port connector Network interface socket 8P10C RJ45 with shielding shrapnel

Our strengths:

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Why Choose Us

DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number

DGKYD112Q060DB2A1D

 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Down
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Multiple Ports Number of Positions  10
Jack Configuration 1X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

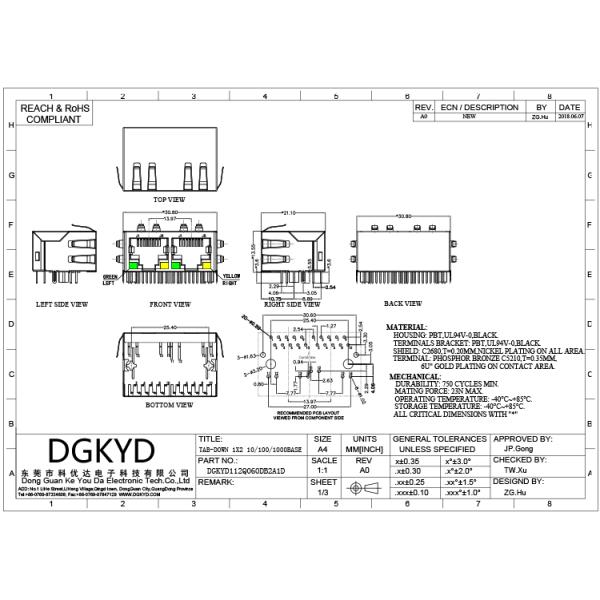

Drawings

1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel1X2 8P10C RJ45 Multiple Port Connectors With Shielding Shrapnel
