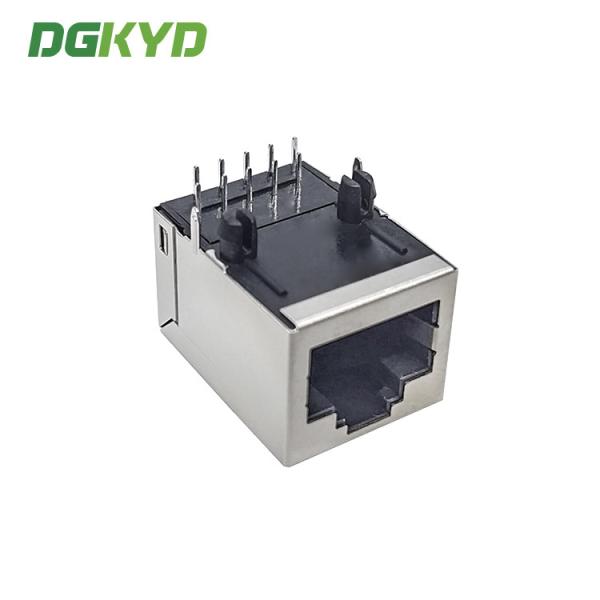

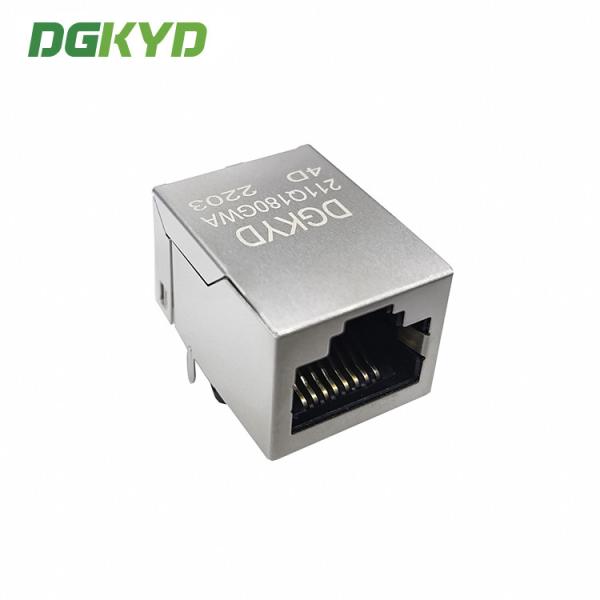

DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD211Q180GWA4D
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiation
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
20 days
Packaging Details :
1080 Tray in Carton
Part Number :
RJ45 Ethernet Connector
HOUSING :
PBT
Connector Type  :
Modular Jack
LED Color :
No
Filter :
With Filter
Contact Mating Area Plating Material  :
Gold 6u/15u/30u/50u
Contact Plating :
6u Glod Plating
Contact Base Material  :
Phosphor Bronze
Storage temperature :
- 40 ℃ ~ 85 ℃
Applications Speed :
10/100/1000 Base-T, AutoMDIX
Latch :
TAB-Up
Description

DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector

DGKYD211Q180GWA4D 10Pin Connector Network Interface Modular Block Jack Ethernet Filter RJ45 with Transformer

Parameters

Part Number

DGKYD211Q180GWA4D

 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Single Ports Number of Positions 

10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

DGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin ConnectorDGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin ConnectorDGKYD211Q180GWA4D RJ45 Single Port With Transformer 10Pin Connector

FAQ:

Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.
Q2: How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welcome.
Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
