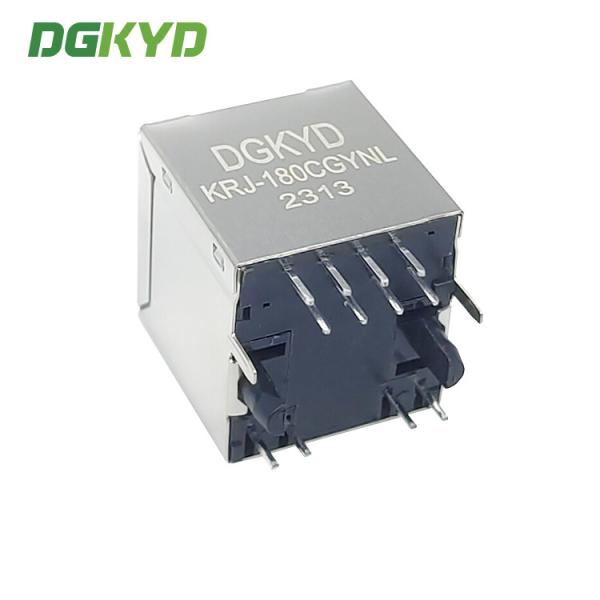

KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-180CGYNL
Price :
Please contact us to get the latest price.
Product Name :
RJ45 Shielded Connector
Feature :
Metal pcb MOUNTABLE rj45 jack
rj45 port :
1x1,1x2,2x2 etc,custom
LEDS/EMI fingers :
customized
Gender :
Female,Receptacle
Applications :
switch,transceiver,laptop,computer RJ45 etc
working temperature :
- 40 ℃ ~ 85 ℃
Storage temperature :
- 40 ℃ ~ 85 ℃
Description

KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

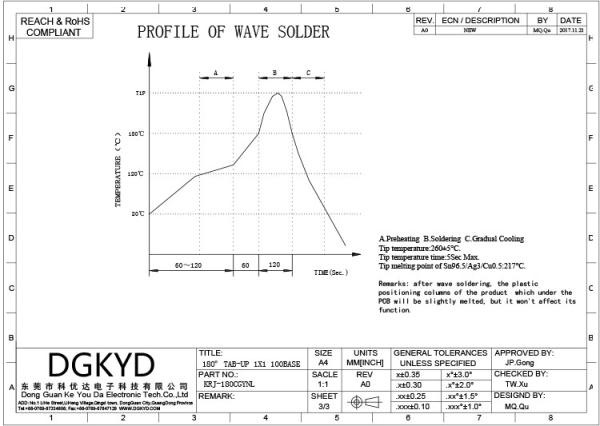

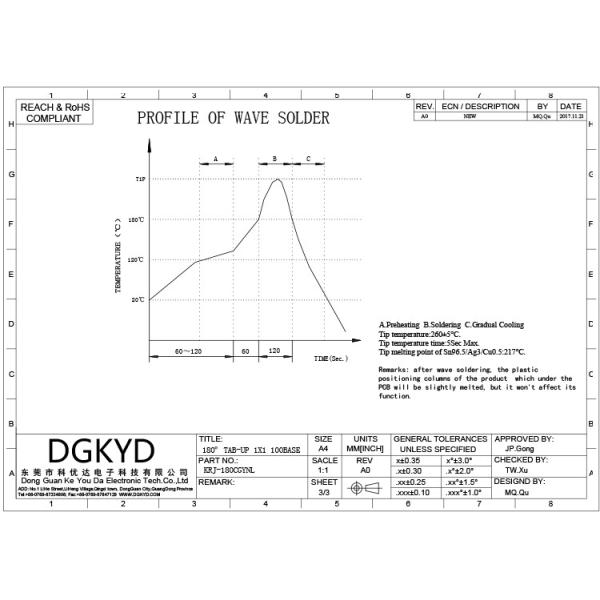

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω

Parameters

Part Number KRJ-180CGYNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings

KRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDSKRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDSKRJ-180CGYNL Vertical entry 100 BASE RJ45 Shielded Ethernet Connector with LEDS
