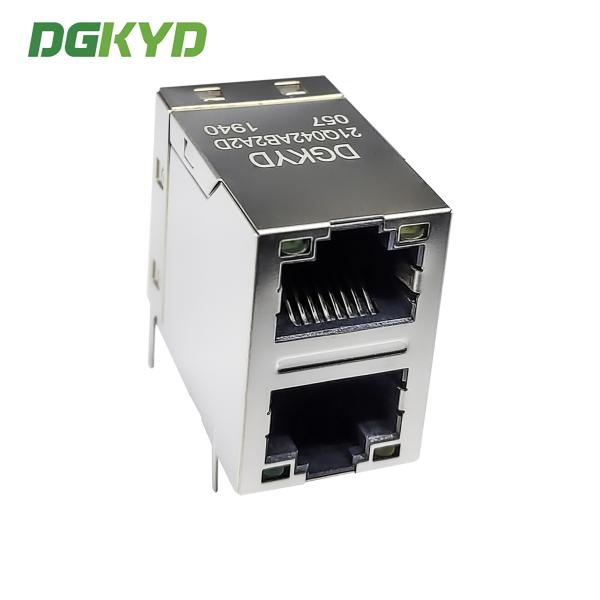

RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD21Q042AB2A2D057
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 with transformer
Port Configuration :
Double port
Connector Style :
Jack
Gender :
Female
Shielded :
yes
Housing Material  :
PA66 Polyester
Status Indicator :
Green/Yellow
Voice Control :
Google Assistant, Amazon Alexa
Color :
Black
Category :
Phone Jacks
Material :
PA66
Termination :
DIP
Operation Temperature :
-40°C~+85°C
Ethernet :
1000 BASE-T/TX
Insetion Type :
Side entry
Type :
RJ45
Description

RJ45 multi port connector 6U Gigabit filter 2X1 modular block socket RJ45 network port connector DGKYD21Q042AB2A2D057

Product Specification Document

DGKYD21Q042AB2A2D057.pdf

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: - 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

Parameters

Part Number DGKYD21Q042AB2A2D057 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter With Filter LED Option With LED
LED Color Grenn-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration  Double Ports Number of Positions  10
Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PA66 Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
