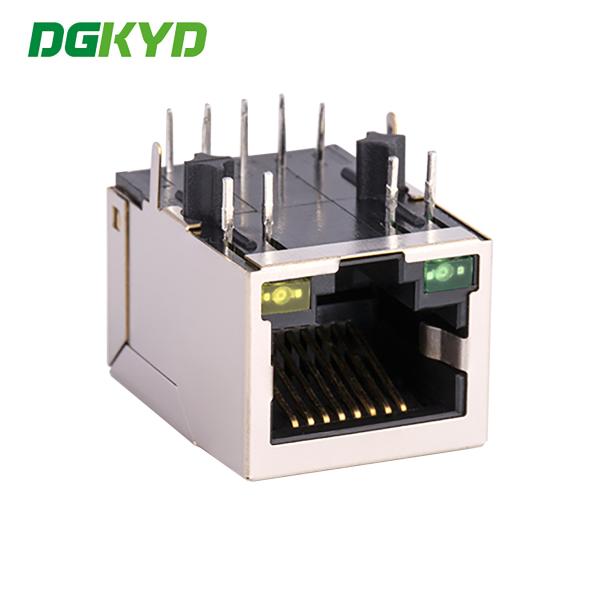

RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD111B093BA2A1D
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Data Rate :
100 Base-T
PoE :
Non-PoE
LED :
Green/Yellow
Operating Temperature :
-40 °C up to +85 °C
gold-plating :
6U
Shielded :
Metal Shielded
Connector Style :
Jack
Port Configuration :
SIngle port
Modular Jack & Plug Interface Type :
RJ45 with transformer
storage temperature :
-40°C~+85°C
Number of stitches :
8P8C
Description

RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D

Product Specification Document

DGKYD111B093BA2A1D.pdf

Part Number DGKYD111B093BA2A1D Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  1X1 Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
