Rj45 With Transformer Giga Single Port Tab-Up Intergrated Magnetics Ethernet

Spectifications

Feature:

1.Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2.Contact:Phosphor Bronze C5191,Thickness=0.35mm plated,Nickel 30u" Min, Gold plated on content area 6u"Min
3.Housing:Thermoplastic PBT+30%GF UL94V-0 rated
4.Operating Temperature:0℃ --70℃
5.Storage temperature:-40℃--85℃

Peak reflow temperature rating 245℃
1.Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:(25℃)

1.Turns Ratio:
Tx & Rx = 1:1±5%

2.Insertion Loss:
@1-80MHz:-1.0dB Max
@100MHz: -1.2dB Max

3.Return Loss:
@1-30MHz:-16dB Min
@60-80MHz:-12dB Min

4.Common Mode Rejection:
@1-100MHz:-30dB Min;
@200MHz:-20dB Min

5.Crosstalk:
@1-100MHz:-30dB Min

6.OCL:
@100KHz,0.1V
@8MADC:350uH Min

7.Hi-Pot:1500VAC,1mA,1Sec

Lead-free process,compliant RoHS

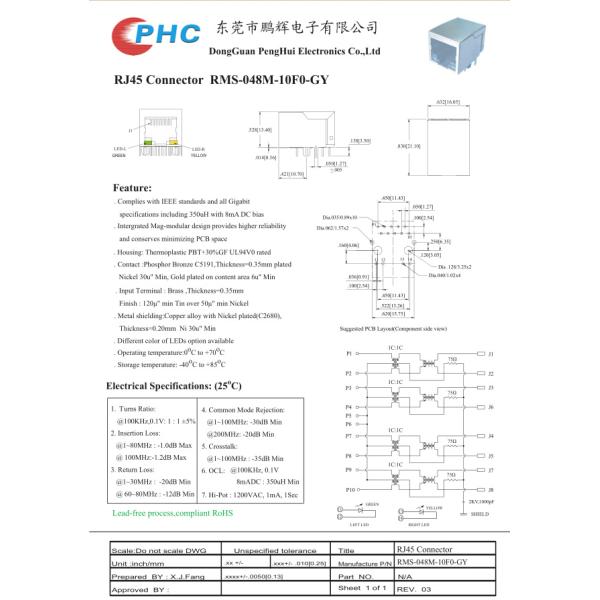

Drawing

Rj45 With Transformer Giga Single Port Tab-Up Intergrated Magnetics Ethernet

Company profile

DongGuan PengHui Electronics Co.,Ltd was established in July od 2006 . Professional manufacturers that integrates R&D, production , sales and servers.

Our major products : all kind of RJ45 , the connector in pose PCBA solution ; Lan connector solution ; SFP connector ; new connector mold design ; OEM & ODM stamping .

We have 10 years of experience in connector industry, our product export more than 20 countries and area.

Now , the age of big data is here , we have more faster and more reliability connector to support them.

High quality ; Fast Delivery time ; Best price.

Why Choose PengHui Quality

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls

2. RoHS compliance

3. ISO 9001:2008

4. OEM for PULSE

5. UL Certification

6. Active Environmental policy

7. Reach Cetitifaction

8. Every module tested 3times (not just batch tested)

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

· New Project: Strong technical and ideal support your new design(6-10) platened product every year!

· Existing projects: Try to help customer to save the cost to offer the good quality product and save time.

· Free Samples:3-5 PCS of each part number

· Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

· Customer complaint:24-48 hours reply 8D report

· Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair kits if customers are not satisfied)

Main Customer

Metal And Terminal Stamping ; Plastic Injection

Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team
