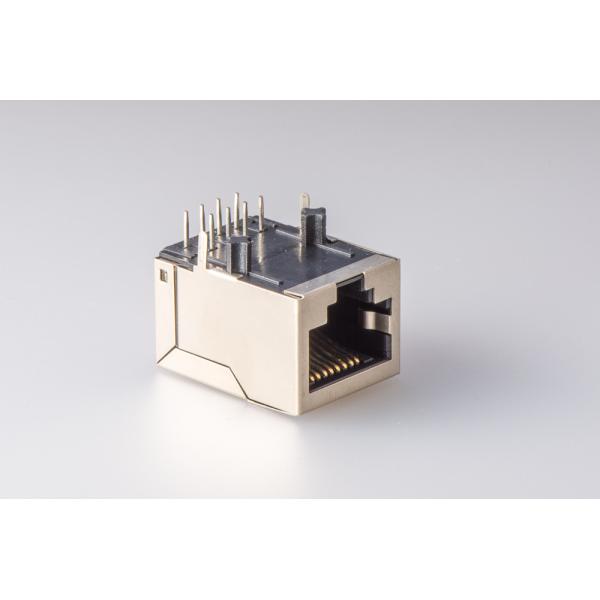

Power over Ethernet / PoE + 10 / 100 Base-TX RJ45 Jack with Magnetic Module


Specifications

Electrical:

1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA　bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz

Operating and storage temperatures:

1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃

Drawing

Power over Ethernet / PoE + 10 / 100 Base-TX RJ45 Jack with Magnetic Module
( PHC )




Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .

Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

1. All the step are doing by ourself. So we can control the cost
2. PHC have more than 30 units automation equipments to product as possible
3. PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
4. With large scale of production lines, we can reach to cost reduction at the most extent

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if

customers are not satisfied)


Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays

Application:

1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box

Equipment




Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team
