10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules
10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules
Specifications
Brand Name :
PHCONN
Model Number :
RMS-171B-10H6-GY
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
500 PCS
Price :
USD 1.6 ~ 3.0 PCS
Payment Terms :
T/T, L/C, D/A, D/P, PAYPAL
Supply Ability :
2,000,000pcs/Month
Delivery Time :
3-30 work days
Packaging Details :
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
port :
Single
shield Material :
brass alloy
plastic :
PBT
terminal :
phosphor copper
application :
1 port 10 / 100 / 1000 base - T
Led :
Yellow , Green , Red , Blue Option
Main Products :
RJ45, side entry low profile rj45 jack
Withstanding Voltage :
AC 1500V RMS 50Hz or 60 Hz 1 min
Description


10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules


Spectifications

Electrical

1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1000V RMS 50Hz or 60Hz 1 min

Mechanical

1.Insertion Force

2 CONTACTS....350g

4 CONTACTS….500g

6 CONTACTS….750g

8 CONTACTS….900g

10 CONTACTS....1050g

2.Retention Strength

7.7KG.F min between jack and plug

3.Durability

750 mating cycles min

Material

1.Housing

ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2.Contact Wire

Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm

thickness phosphor bronze alloy selective gold plating over nickel

3.Shield

0.20~0.25mm thickness brass with tin plated

4.Gold Plating

1u inch,3u inch,6u inch,15u inch,30u inch,50u inch

6.RoHS peak wave

solder

RoHS peak wave solder temperature rating 240°C±5°C

LED Specification

Standard LED Color: LED Wavelength: Forward (V MAX): Typical (V TYP): Luminous
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30MCD
Orange 580-610 nm 2.5V 2.1-2.2V 50-100MCD

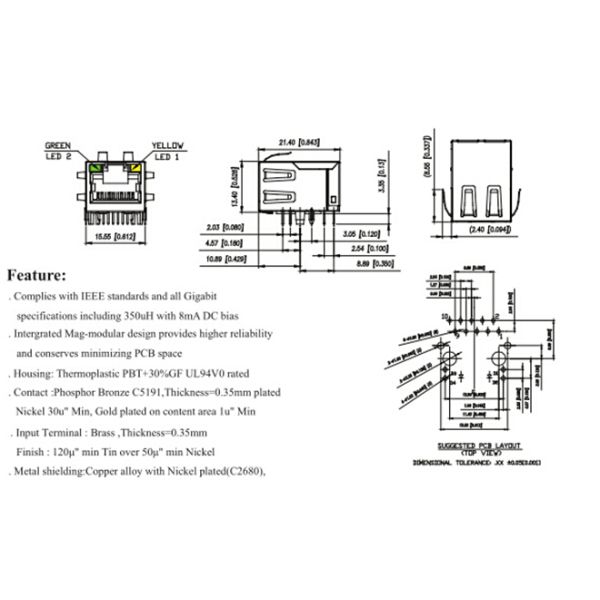

Drawing

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules

Line Drawing

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules

LED

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules

Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .

All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong (HQ)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.


Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.

Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%



Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

8. kits if customers are not satisfied)


Main Customers


10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules
10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules


10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules 10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules




Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team
