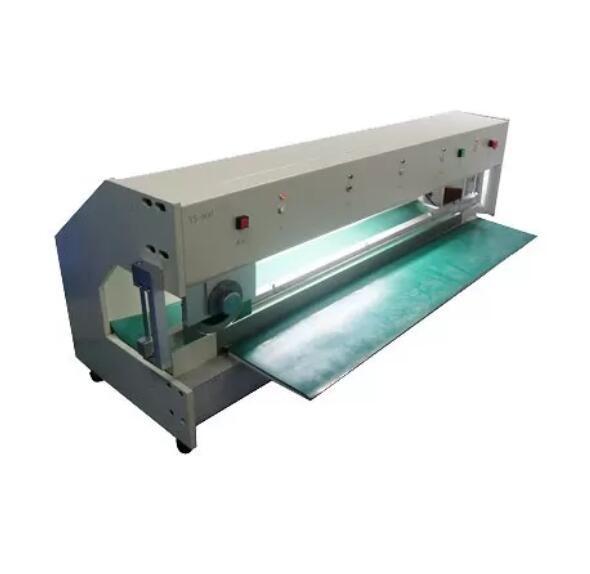

YS-805C 900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine
YS-805C 900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine
Specifications
Brand Name :
RKENS
Model Number :
YS-805C
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300SETs Per Month
Delivery Time :
3-5 days
Packaging Details :
Wooden Case
Name :
Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine
Suitable PCB :
V-grooved pcbs
PCB thickness :
0.2-3.2MM
V cut thickness :
0.2-2.0MM
Blade length :
900mm
Power supply :
220V/110V
Description

900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine

Intro:

YS-805C is a PCB Depaneling Machine for pcbs with v-cut, cut both small and large PCBs fast and economicaly. To optimize operation,the separation length can be programmed.

The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.

Suitable:

  • Suitable for pcb, aluminum pcb, fiber panel with V-cut
  • Available PCB thickness: from 0.2mm to 3.2 mm
  • Available V-cut thickness: from 0.2mm to 2.0mm

Parameter

Model YS-805C
Model Blade Motion Upper Circular Blade Moving Automatically
Cutting path 900mm
cutting thickness 0.5mm-3.2mm
cutting length 0-900mm
Cutting speed 300mm/sec or 500mm/sec
Upper circular blade diameter 125mm,cutting point angle 26-28'
Lower blade 900MM
Drive mode Micro stepping motor + precise linear guaidway
Voltage 220v/110v,50/60hz,250w
Warranty

Three years for the pc board

One year for unit machine
Weight 80kg
Size 1200x550x460CM

Features:

1,Microcomputer program control,precise positioning and good stability.

2,Blade moving speed is adjustable,500mm/s or 300mm/s. Speed can also be increased by modifying program.

3,Can fine adjust cutter wheel:0-2mm, to apply to PCB boards of different thickness and V-CUT of different depth. Can adjust height of operation desk:0-50mm.

4,Depth of black baffle is adjustable:0-150mm. Max cutting length is 1300mm. Max cutting thickness is 0.2-3.2mm,Max depth of V-CUT is 0.2-2.0mm.

5,Blade moving path,moving point and stopping point can be set according to length of PCB board.

6,Upper and lower blades are made of imported high- speed steel, long service life and can be sharpened for 7-10 times.

Dudrable blade , can be grineded.

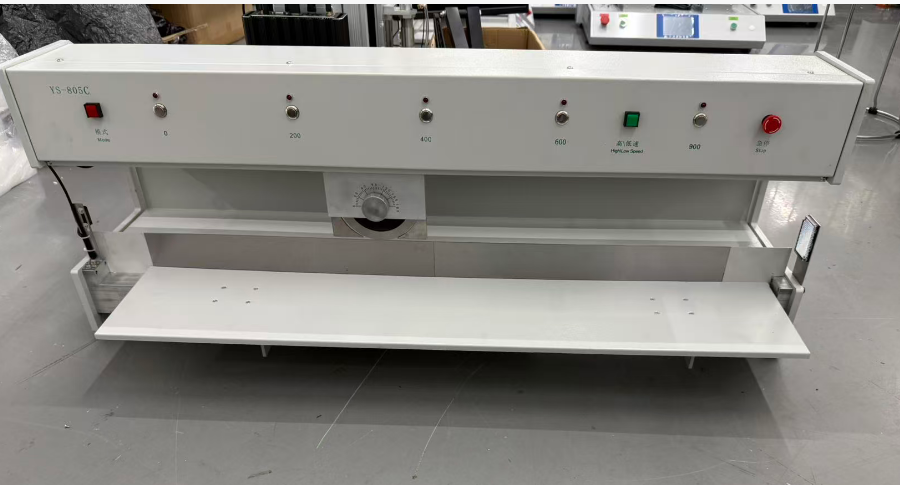

YS-805C 900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine

YS-805C 900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine
