YS-805X 400/600/900MM PCB V Cut Machine, V Groove PCB Depanel Machine
YS-805X 400/600/900MM PCB V Cut Machine, V Groove PCB Depanel Machine
Specifications
Brand Name :
RKENS
Model Number :
YS-805A/B/C
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
300SETs Per Month
Delivery Time :
3-5 days
Packaging Details :
Wooden Case
Name :
V cut PCBA cutting machine, PCBA cutter machine
Type :
Motorized pcb depanel machine
Blade length :
400mm, 600mm,900mm optional
Power supply :
220V110V 50HZ/60HZ
Description

YS-805X 400/600/900MM PCB V Cut Machine, V Groove PCB Depanel Machine

Intro:

YS-805X is a motorized v cut pcb depanel machine. It can seprate big pcbs to smaller pieces. According to your PCB, we have machine with 400mm, 600mm and 900mm length.

Suitable:

V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting

It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.

Available PCB thickness: from 0.2mm to 3.2 mm

Available V-cut thickness: from 0.2mm to 2.0mm

Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.

Parameter:

Model YS-805A YS-805B YS-805C
Cutting Length 0-400mm 0- 600MM 0-900mm
Outer dimension(LxWxH) 740x550X460mm 900x550x460MM 1200x550x460
Electric Load AC220V 50Hz & AC110V/60HZ
Electric Power 250W
Suitabe for V-Groove PCB Board/Aluminum PCB
Cutting Speed 300mm/s 500mm/s Adjustable
Package Wooden box
Weight

Approx.60KG

 70KG 80KG

Features:

1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control upper circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.

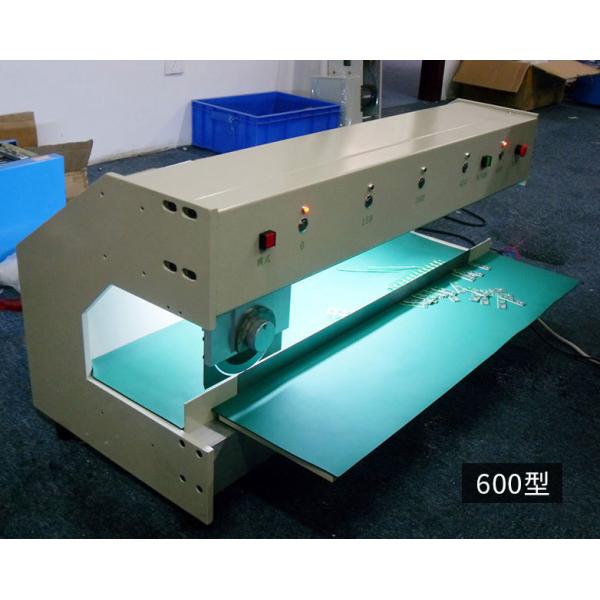

YS-805X 400/600/900MM PCB V Cut Machine, V Groove PCB Depanel Machine

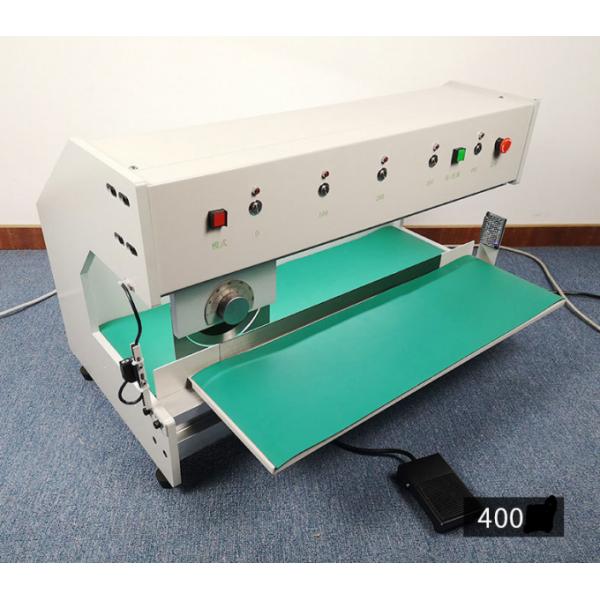

YS-805X 400/600/900MM PCB V Cut Machine, V Groove PCB Depanel Machine

Machine operation video:
