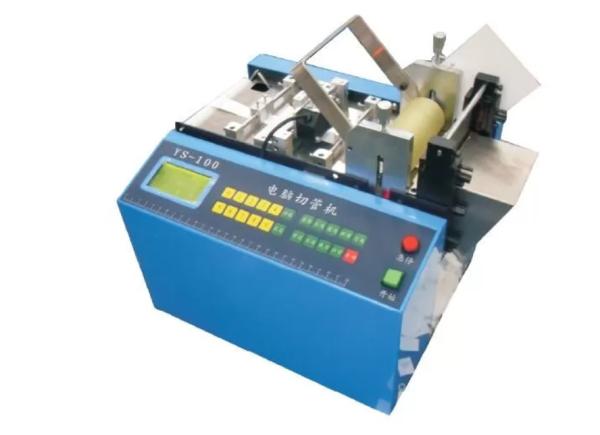

YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks
YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks
YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks
YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks
Specifications
Brand Name :
RKENS
Model Number :
YS-100
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
300 SETS Per Month
Delivery Time :
3-5 days
Packaging Details :
Carton box or Wooden case
Name :
Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks
Usage :
Cut lables, tubes, tapes with marks
Cut length :
1-9999MM
Feature :
Eye sensor detects marks for accurate cutting
Description

YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks

Intro:

Automatic Cutting Machine with sensor is specially desinged for material with marks, such as lables, packing sleeves. The sensor can detect mark, and cut accurately to avoid the machine tolerance. It can make sure the machine can always cut at same place.

Suitable:

This cutting machine is suitable for material with marks, such as packing sleeve, labels, tubes with marks, etc. The sensor can detect marks, then feedback to machine for cutting. Accurate cutting without error.

Parameters

Name Accurate Tube/Tape/Sleeve Cutting Machine With Sensor For Products With Marks
Model YS-100
Power Supply 220V/110V 50HZ/60HZ
Blade length 100MM
Cut length 0.1-9999MM
Speed 100-120 cuts/minute
Weight 28KG Packed by carton case
Size 57x43x50CM
Language English
Eye sensor Optional

Features of tube cutting machine

1.*English manual and display which is easy to understand

2.*Best service:mother board and system are developped by our own engineer.Best technology support and after sale service will be provided

3.*High speed: It can cut 100~120 cut per minute. (50mm long)
4.*Accuracy: Small cutting length such as 30mm,the error is below 1mm
5.*Cutting type: Cold cutter which is durable or hot knife cutting .
6.*Automatic operation:Easy operating and safety machine. It works automatically only by setting length and quantity
7.*Automatic stop: It stops automatically if materials run out during operation
.8.*There is a pole on the machine which can hold the material roller below 10kg.

9.*Materials Can Cut: pipe,tube,belt, webbing, fabric, cloth, foam,ribbon,plastic,film,label,wire,shrinkable tube,cable ties,silicone tube,pvc tube,wiring,plastic hose pipe,rubberhose,PTFE tube,chequered tube,velcro,insulated sleeve,insulation paper,copper foil and so on.

Cutting samples

YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks

YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks

YS-100 Automatic Cutting Machine With Eye Sensor For Tube/Label With Marks

Machine video:
