YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter
YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter
YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter
YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter
Specifications
Brand Name :
RKENS
Model Number :
YS-100
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
300 SETS Per Month
Delivery Time :
3-5 days
Packaging Details :
Carton box or Wooden case
Name :
Auto shrink tube cutter
Usage :
Cut shrink tubes, pvc tubes, wires, nickel strip,etc
Cut length :
1-9999MM
Type :
Automatic tube cutting
Description

Factory Heat Shrink Tubing Cutting Machine, Shrink Tube Cutter

Intro:

YS-100 is an automatic tube cutter machine. It can cut shrink tubes, wires, pvc tubes, silicone tubes, hook and loop tape, manget strip, etc. Tube cutter can cut various materials to required length. The cut length can be set from 0.1 to 9999mm.

  • English language and label
  • 220V/110V 50HZ/60HZ
  • Programmable to set length , quantity

Usage:

Cut Various materials, such as PVC tubes, shrink tubes, rubber silicone tubes, fiberglass tubes, wires, velcro,elastic, nickel strip, PV ribbons, etc.

Parameters

Name Automatic shrink tube cutting machine
Model YS-100
Power Supply 220V/110V 50HZ/60HZ
Blade length 100MM
Cut length 0.1-9999MM
Speed 100-120 cuts/minute
Weight 28KG
Size L360xW320xH350mm
Language English

Features:

1.Fast speed: It can cut 100~120 cuts per minute. (50mm long)

2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: Cold knife machine. Optional hot knife machine for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

Questions&Answers

1. Is it an automatic machine?

Yes, it is an automatic cutting machine. You just need to set cut length and cut numbers, it will cut automatically.

2. What about the language of the panel and user manual?

The panel, munual and software will be all in English. So people around the world can use it conveniently.

3. What about the warranty?

The warranty is 3 years. We provide life-long service. Whenever you need help, just contact us.

4.What about the lead time?

We will machines in stock, we can ship the machine within 1-2 days after getting your payment.

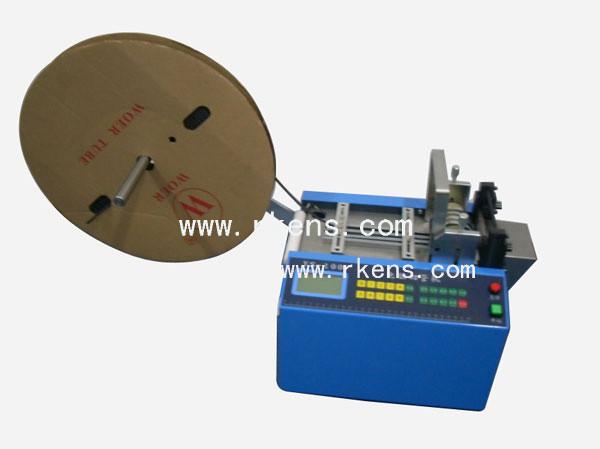

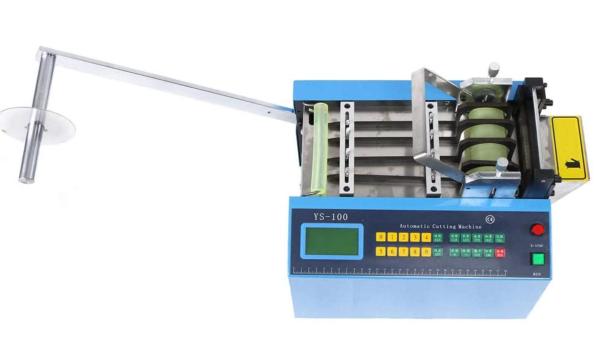

Pictures of PVC tube cutter

YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter

YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter

YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter

YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter

YS-100 Factory Heat Shrink Tubing Cutting Machine, Auto Shrink Tube Cutter
