RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or loose
RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or loose
Specifications
Brand Name :
RKENS
Model Number :
RS-904A
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Paypal,Western Union
Delivery Time :
3-5 days
Packaging Details :
Carton box or Wooden case
Name :
durable competitive price Taped Axial Lead Forming machine
Usage :
Cut lead, bend lead
Axial lead size :
0.35-0.8mm
Suitable for :
Taped resistor,diode and other axial components
Description

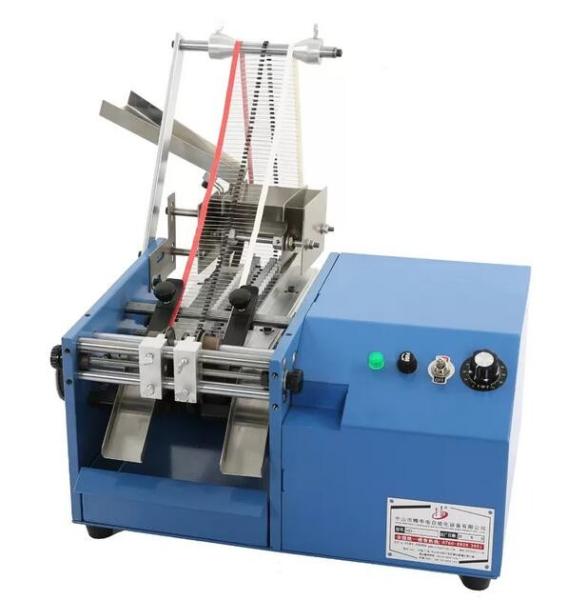

RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or Loose

Intro:

RS-904A is an motorized axial lead former/cutter for 0.35-0.8MM lead diameter. Axial lead formers for taped components process up to 40000- 6000PCS /H. Tape and reel holder is included for putting material roll.

The linear vibration track and feeding funnel makes it available for loose resistor/diodes too. Operator can only put components into funnel.

  1. For both taped and loose axial components.
  2. Optional vibration feeder bowl is available

Suitable:

  • For taped axial components, such as taped resistor, taped diode, etc
  • Lead diameter should be within 0.35-0.8MM diameter
  • Cut leads only, or cut and form. Can be customized.
  • Motorized machineWorks on 220V or 110V.
  • Fast speed, easy operation. Save labor.

Parameter:

Model RS-904A
Power 220V /110V 50HZ/60HZ
Efficiency 40000-60000pcs/hour
Key Specification

1.forming machine is mainly used for axial type braid resistor, capacitor, inductor, diode and other electronic components foot cutting and forming into U or F type assembly.

2.Cutting blades is imported SKD -11 professional steel tools. It's sharp and durable. SKD - 11 steel is the most well known in the industry.

3.The applicable roll,boxed materials.

4.Small size,cut size precisely,suitable for short feet operation.

5.Optional electric modules, consisting of electric resistor lead forming machine

Features:

1. This machine is suitable for axial taperesistors and electronic components forming and cutting feet;

2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;

3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

4. Forming span and feet length are adjustable;

5. Using tools imported from Japan, durable;

6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

Available Forming size

RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or loose

RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or loose

Axial lead former with feeder bowl

RS-904A Durable Competitive Price Taped Axial Lead Forming Machine For Axial Components On Tape Or loose
