RS-904F Motorized Factory supply resistor cutting forming machine
RS-904F Motorized Factory supply resistor cutting forming machine
Specifications
Brand Name :
RKENS
Model Number :
RS-904F
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Paypal,Western Union
Delivery Time :
3-5 days
Packaging Details :
Carton box or Wooden case
Name :
Factory supply resistor cutting forming machine
Usage :
Cut lead, bend lead
Axial lead size :
0.35-0.8mm
Suitable for :
Taped resistor,diode and other axial components
Description

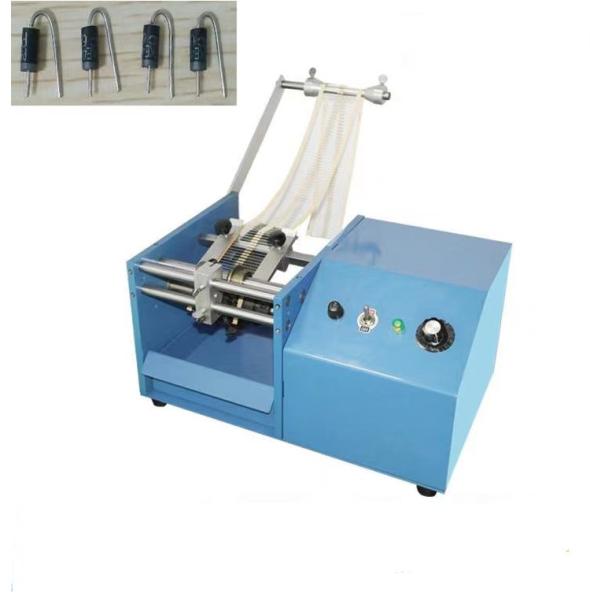

RS-904F Motorized Factory supply resistor cutting forming machine

Intro:

This axial lead forming machine is for taped radial components only. It can cut and form taped axial components with 0.35-0.8MM lead diameter. It can meet different forming requirements, such as cutting only, or cutting and forming. The forming tool is customized according to cutomers' forming need, including U shape and F shape forming tool. U shape and F shape can not share same machine.

Suitable:

  • For taped axial components, such as taped resistor, taped diode, etc
  • Motorized Resistor / Diode Lead Cutting Forming Machine
  • Lead diameter should be within 0.35-0.8MM diameter
  • Cut leads only, or cut and form. Can be customized.
  • Motorized machineWorks on 220V or 110V.
  • Fast speed, easy operation. Save labor.

Parameter:

Model RS-904F 220V/110V Motorized Resistor / Diode Lead Cutting Forming Machine
Power 220V /110V 50HZ/60HZ
Efficiency 40000-60000pcs/hour
Key Specification

1.forming machine is mainly used for axial type braid resistor, capacitor, inductor, diode and other electronic components foot cutting and forming into U or F type assembly.

2.Cutting blades is imported SKD -11 professional steel tools. It's sharp and durable. SKD - 11 steel is the most well known in the industry.

3.The applicable roll,boxed materials.

4.Small size,cut size precisely,suitable for short feet operation.

5.Optional electric modules, consisting of electric resistor lead forming machine

Features:

1. This machine is suitable for axial taperesistors and electronic components forming and cutting feet;

2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;

3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;

4. Forming span and feet length are adjustable;

5. Using tools imported from Japan, durable;

6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

Available forming size and shape

RS-904F Motorized Factory supply resistor cutting forming machine

RS-904F Motorized Factory supply resistor cutting forming machine

Mahine video:
