High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System
High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System
High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System
High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System
Specifications
Brand Name :
RKENS
Model Number :
YS-L601
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Packaging Details :
wooden case
Name :
Auto Screwdriver With feeder
Power supply :
220V/110V 50HZ/60HZ
Description

High Efficiency Simple Screwdriver With Automatic Feeding System

Intro:

Machine includes feeding system, operating platform and screwdriver.

1.The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe

2.Operating platform. Use pedal to control electric screwdriver of up and down.

3. Electric screwdriver tightens the screw into product.

Simple Operation:

User needs to put product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At last, take out the finished product and put the next one by hand.

Parameters

1.Screw capacity of feeding device : M2X6 5000PCS

2.Efficiency: 50-70PCS/MIN(Depends on screw length)

3. Voltage:220V 50HZ

4. Screw-feeding Speed : 0.5s/pc

5. Power: 30W

6. Air pressure: 2-3KGF/CM2
7. Weight: 35KG

8. Feeding device Size: 370*250*190MM

9. Noise: lower than 65dB

10 Conveying distance: 1-4Meters

Application:

1.Applicable screws: M1-M6.

2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.

3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

4. Screw materials: iron, copper, stainless steel, etc.

5. Materials of products to be screwed: plastic, iron, aluminum, etc.

6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.

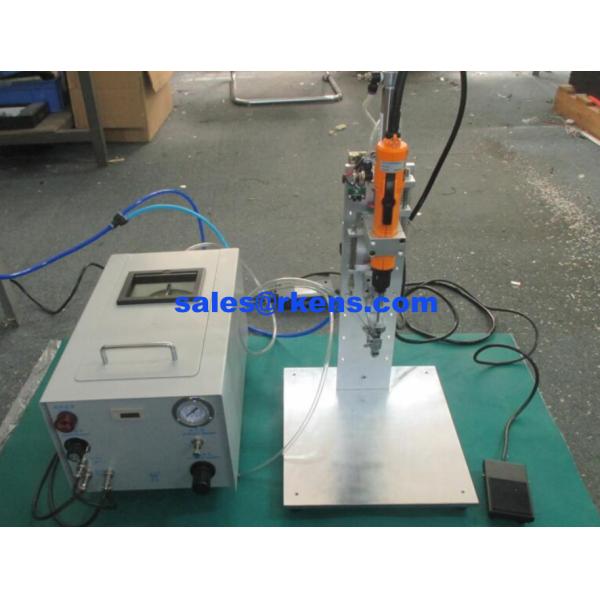

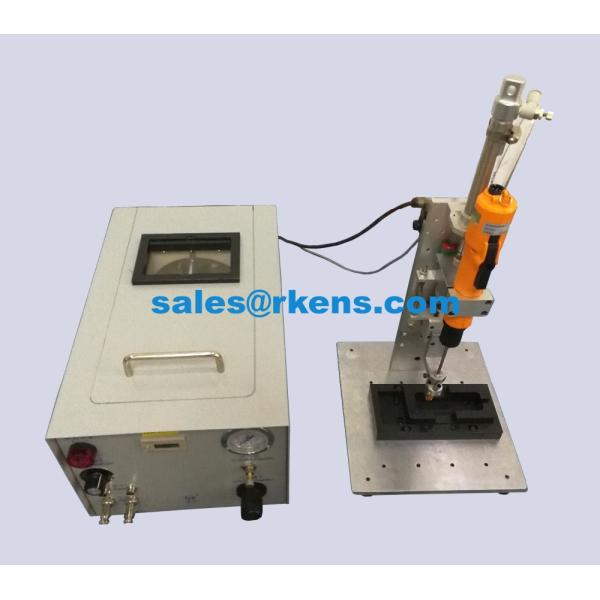

Screwdriver with feeding system machine pictures

High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System

High Efficiency Simple Z Axis Screwdriver With Automatic Feeding System
