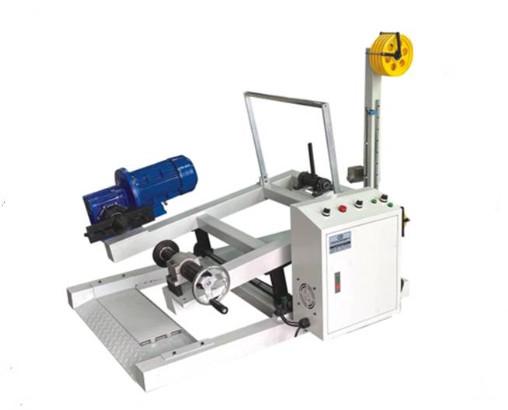

RS-503K 300KG Open Heavy Load Cable Wire Pay-Off Machine/ Cable Pre-feeding Machine
RS-503K 300KG Open Heavy Load Cable Wire Pay-Off Machine/ Cable Pre-feeding Machine
Specifications
Brand Name :
RKENS
Model Number :
RS-503K
Place of Origin :
China
Name :
Heavy load cable pre-feeding machine
Max load :
300KG
Description

Open Heavy Load Cable Wire Pay-Off Machine/ Cable Pre-feeding Machine

Intro:

RS-503K open heavy-load cable pay-off machine is suitable for automatic pre-feeding cable end processing equipment such as new energy automobile lines and large square sheathed cables.

Parameters:

Machine model RS-503K
Machine power supply AC380V
Suitable cable spool

Dia:400-800mm

Width:350-550mm
Wire cone diameter 80mm
Main shaft diameter 40mm
Max load weight 300KG
Motors power

total power 2370w, one 2200W motor, one 50W24V switching power supply,

one RV75, 10 ratio reducer, 120w lifting motor with RV30 reducer
Size 1200x1200x1100mm
Machine weight 150KG

Other main featuers:

Slide rail stroke 700mm, wire storage wheel diameter 200mm, total of 7 can be customized, forward and reverse control, motor frequency conversion brake, adaptive speed regulation. The higher the position of the slider goes up, the faster the motor speed. When it goes down, the speed is faster. On the contrary, it is anti-knotting. Induction, can be connected with the front wire stripping machine to stop the machine together.
