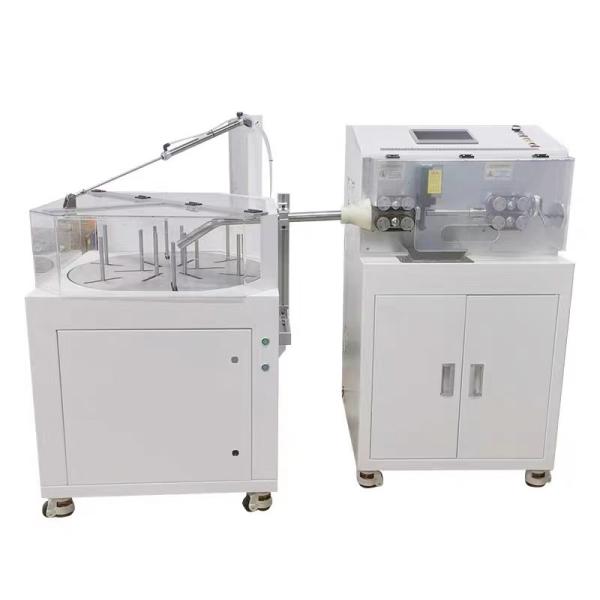

RS-70PC Belt Type Cable Stripping Cutting Machine For Max 70 Sqmm With Cable Coling Device

Intro:

RS-70PC is Belt feeding type micro-computer type wire cutting and stripping machine. Parameters can be set by pressing buttons. LCD will show all parameters. Operator can set cut length, quantity, front and rear strip length, etc.

8 Wheels roller driving mode, for big cables

• English language display
• 220V/110V 50HZ/60HZ power supply
• For 6-22MM OD power cable,PVC,etc
• Belt feeding, no pressing marks on cable

Suitable:

1. Fast speed and multi-functional wire cutting and stripping machine

2.Suitable for round muti-core cable within 22MM OD. Or electric wire within 70 sqmm.

3. Cut only, or cut and strip at same time.

4. Programmable for setting parameters. Easy operation.

Specification:

Feature:

1. This machine is mainly aimed at the wires of the automobile industry, sensor industry, power industry, photovoltaic industry, electric control cabinet and battery box. The whole coil of wire can be stripped at the required length and peeled at both ends and the middle peeling automatically without hurting. The wire feeding accuracy of the sheath and the conductor and the belt greatly improves the efficiency;

2. This machine supports a variety of working modes, such as long wire, short wire, sheathed wire and multi-segment leather. One machine can meet the requirements of multiple wires;

3. Display mode: touch screen display interface, which can be switched between Chinese and English;

4. This machine adopts PLC control system to send pulses to improve the precision of cutting line; 5. Operation mode: semi-automatic manual operation of length measurement and cutting of multi-layer residual Skin, leftover skin in the middle, easy to operate

Machine structure

Machine video:
