RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine
RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine
RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine
RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine
Specifications
Brand Name :
RKENS
Model Number :
RS-5508G
Place of Origin :
China
Name :
Auto wire cutting stripping and double-end tinning machine
Usage :
Cut, Strip, tin
Cut length :
10-650mm(can be customized)
Strip length :
0.5-8mm
Twist Length: :
3-9MM
Tin Length: :
0.5-9mm
Description

Auto wire cutting stripping and double-end tinning machine

Intro:

RS-5508G is full automatic wire cutting, stripping and tinning machine. It can cut, strip, twist and tin wires at fast speed.

Usage: Cutting, One -end stripping, two-end stripping, two-ends twisting, one -end tinning, two-ends tinning.


It is servo motor type machine. High Accuracy.

Suitable:

This wire cutting stripping tinning machine works for stranded electric wire, double-core flat ribbon cable.

Specification:

Function Full automatic cutting full stripping, tin dipping
Power AV 220V 50/60Hz
Usage Cut, Strip, Twist and double-end tinning
Production rate 8000~12000pcs depend on the wire length
Applicable wire AWG32-AWG10
Cutting length 10-650mm
Cut tolerance 0.2+-0.02*L
Stripping Length 0.5-8mm
Twist length 3~9mm
Tinning length 0.5~9mm
Size 800x600x1000mm
Weight 350kg

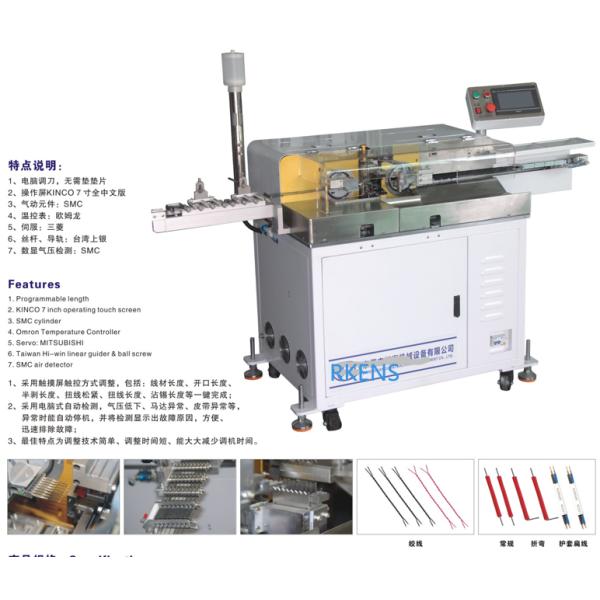

Features:

1. LCD touch scree control, Including: cut length, strip length, twist length, twist tightness,etc

2. 7 inch operating touch screeen

3.SMD cylinder

4. Omron temperature controller

5. Servo motor MITSUBISHI

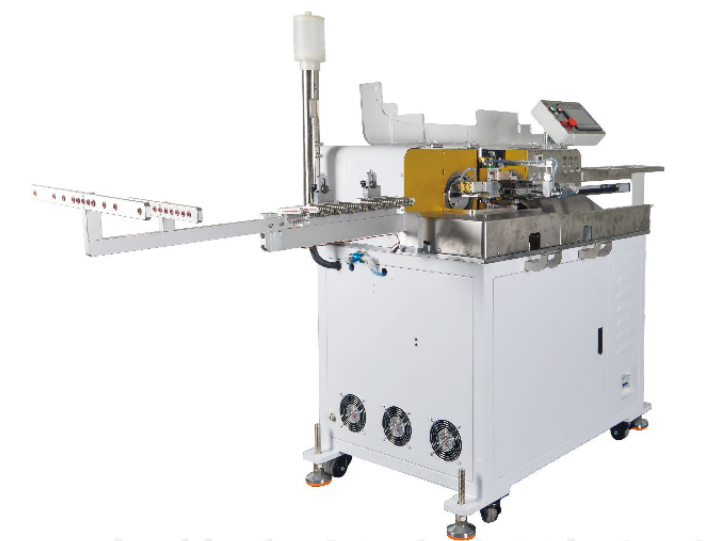

Wire cut strip and tin machines pictures

RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine

RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine

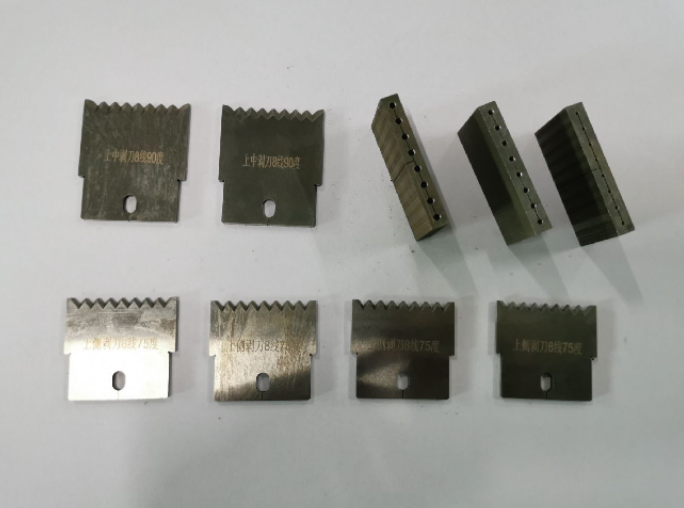

Easily damaged parts

RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine

Machine video:

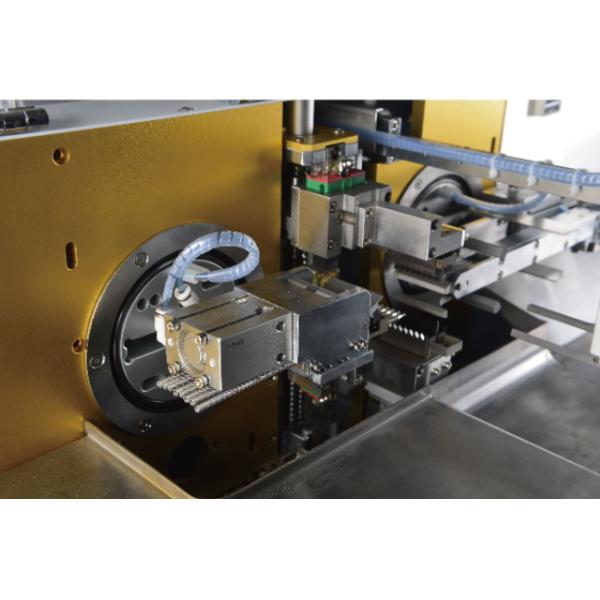

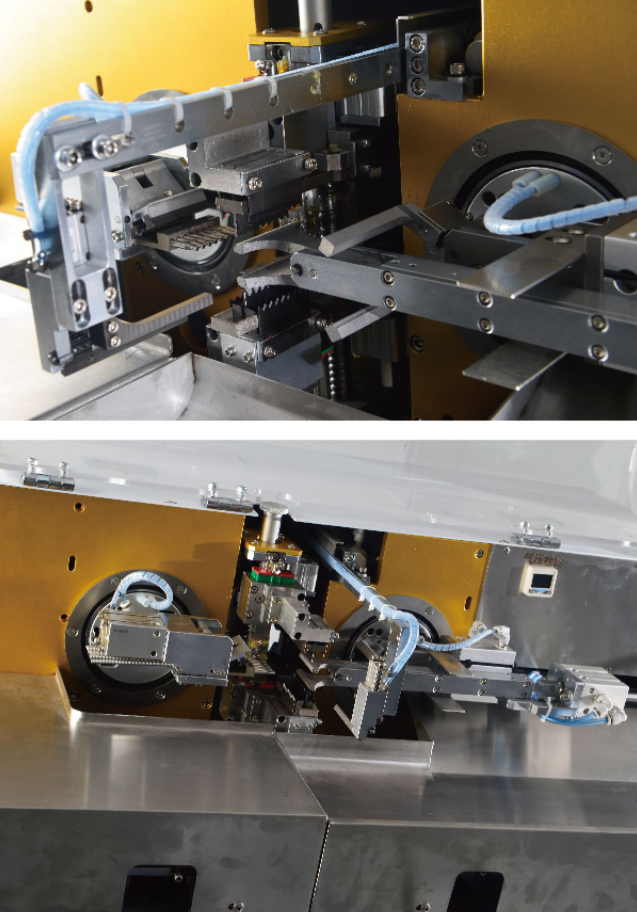

Machine detail

RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine

RS-5508G Full Automatic Sever Motor Wire Cutting Stripping And Double-End Tinning Machine
