YS-HX331 Automatic Soldering Machine Robot Solder Machine
YS-HX331 Automatic Soldering Machine Robot Solder Machine
Specifications
Brand Name :
RKENS
Model Number :
YS-HX331
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
300 sets per month
Delivery Time :
12-15 days
Packaging Details :
Wooden box
Description

Automatic Soldering Machine Robot Solder Machine

Intro:

It is an automatic soldering equipment that replaces manual work. With this equipment, there is no need to worry about skilled workers. YS-HX331 is one working platform operation, fast speed and save labor.

Suitable for welding products:

It is suitable for PCB board plug-in welding, Wire welding,Hardware component welding and more.

Widely used in Toys, home appliances, automotive electronics, LEDs, etc.Connectors, IT communications, vehicle antennas, etc. And Electrical appliances, hardware accessories, etc.

Parameters:

Basic parameters Specification&Model YS-HX331
Outside dimensions 671mm×551mm×612mm
Weight 63Kg
Using enviroment Power source AC 220V/50Hz
Air Clean 0.4~0.6kpa
Out connection tube diameter 8mm
Working environment 0-40℃ Humidity 20-90% (no condensation)
Allow minimum desktop size 600mm×500mm
Temperature Control System Heating vortex 200W/300W
Range of temperature 180-450℃
Number of irons 1
Motion System Number of axes 5
Drive system Stepper motor, synchronous belt
Workpiece size X-axis 300
Y-axis 300
Z-axis 100
U-axis 360°
Maximum speed X/Y-axis 500mm/s
Z-axis 250mm/s
Repeatability accuracy X/Y/Z-axis ±0.02mm
Maximum weight 10Kg
Program Mode Teaching format Offline/Online
Language Chinese/English
Number of programs 9999
Welding parameter range Use tin wire range (diameter) 0.6mm--1.5mm
Single point welding time (related to the size of the solder joint) 0.2s--100s

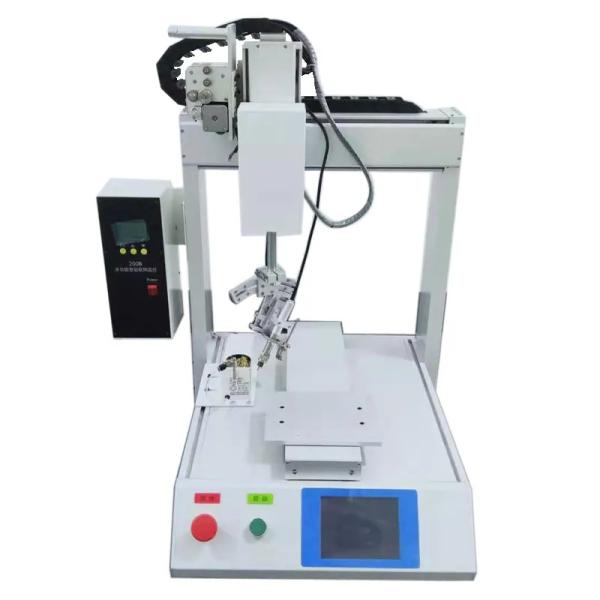

Pictures of automatic soldering machine
YS-HX331 Automatic Soldering Machine Robot Solder Machine
YS-HX331 Automatic Soldering Machine Robot Solder Machine
