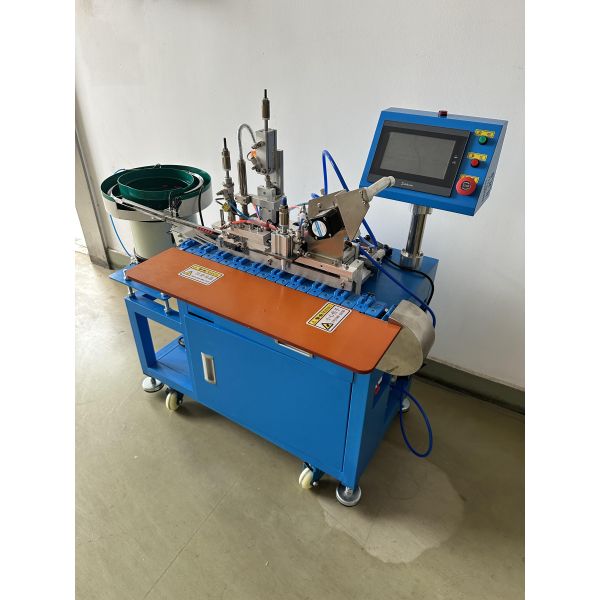

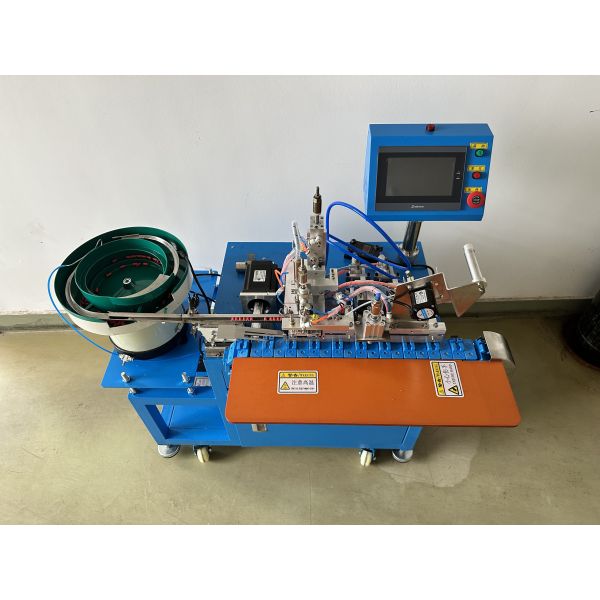

RS-780P-F RJ45/DC Connector Cable Strip And Solder Machine With Vibration Bowl Feeder
RS-780P-F RJ45/DC Connector Cable Strip And Solder Machine With Vibration Bowl Feeder
Specifications
Brand Name :
RKENS
Model Number :
RS-780P-F
Description

Name: Automatic cable stripping and soldering machine with vibration feeder bowl

Intro:

Function:

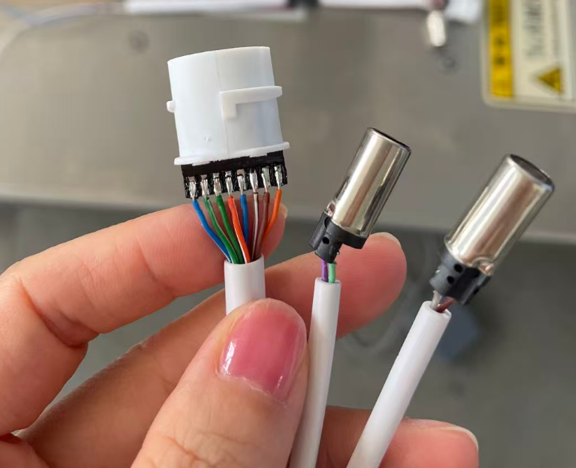

Stripping + soldering data cable connector, for example RJ45, DC connectors, etc. vibration bowl feeder for automatically feeding.

Note: Machine is customized. One machine can work for 1 type connector.

One. Weight and size

For USB-AM and USB-AF:about 120Kg；

For MICRO,TYPE-C,Iphone:about 110Kg

Machine size: 1200mm(L)*650mm(W)*1050 (H)

TWO: Parameters

Power supply: AC220V

Frequency: 50Hz

Power: static ≦300W, dynamic ≦500W

Using pressure range: 4-6kgf/cm²(kpa)

Number of single welding: 1pcs

Efficiency: 900-1300PCS/H

Display: Touch Screen + Button Adjustment Control

Machine video: https://youtube.com/shorts/NnwQXU2-hak?si=LyFnPeFw4XeMiMUv
