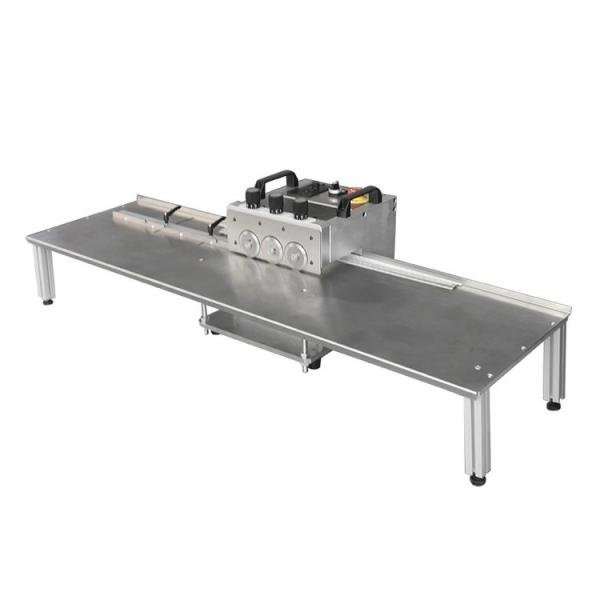

RS-F300 Three-Pair Blade LED Strip Aluminum Cutting Machine, LED PCB Separating Machine

Intro:

RS-F300 is a precision depaneler with 6pcs knives for smooth, burr-free separation of PCBs along the scoring groove. With 2400MM platform,the large processing table can be angled to permit processed boards to fall away The design of the pcb depaneling machine eliminates stress on the board and the components during the separation process, preventing post-breakout-related board, component and solder joint defects.

Suitable:

PCB cutting machine is Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB, PCBA, etc.

Specification:

Technical Parameters

Power supply: 230V / 50HZ 40W 110V / 60HZ 40W)

Maximum split-plate length: unlimited

Blade material: SKD61 High Speed Steel

Feeding speed: 300-500mm / s

Plate thickness : 0.2 -5mm

Working temperature: 10-35 ℃

Storage temperature: -20-50 ℃

★Applicable: aluminum plate, glass fiber board and so on, reduce internal stress.

★Parameters: V-groove plate, the upper and lower blade distance adjustable, long tool life..

Features:

1. Using a unique cutting method, the circuit board cutting is completed by six blades, and the upper and lower blades form a group to form a cutting unit. There are three groups, namely A, B, and C. The entire cutting process is divided into three stages. The A group of blades first cuts 40% of the circuit board, and then the B group of blades rolls over the groove cut by the A blade again, and completes the 40% cutting again. The remaining 20% ​​is cut by the C group of blades and polished. Since the cutting amount is small each time, the stress generated during the cutting process is reduced by more than 80% compared with the traditional one-time cutting method. The edges of the cut circuit board are smooth and the board surface is flat, without twisting or warping. The machine ensures that the aluminum substrate is not deformed after cutting.

2. The cutting process is smooth, which improves the positioning ability of the V-CUT groove. Even if the V-CUT groove is very shallow, the V-CUT groove will not jump out of the guide knife, avoiding the production of defective products.

3. Due to the small cutting force of the blade and the use of high-speed steel material, the durability of the blade is greatly improved. The blade life can reach more than one year when cutting the aluminum substrate.

4. All cutting blades are calibrated with a dual-frequency laser interferometer to ensure that the rear blade can continue to cut accurately in the groove cut by the front blade. The blade tip jump is no more than 0.02mm to ensure the cutting quality.

5. Simple operation and fast speed.

6. A stainless steel platform with laser scale positioning function can be installed (1.2 meters or 2.4 meters can be selected).

7. The upper and lower circular knives can be adjusted.

8. The circular knives can be re-grinded and reused many times.

9. The baffle can be customized to facilitate the slitting of board edges with different widths.

10. The X and Y axes can be adjusted to improve the slitting accuracy.
