Short Leads Resistor&Diode Forming Machine With Removing Tape Function
Short Leads Resistor&Diode Forming Machine With Removing Tape Function
Specifications
Brand Name :
RKENS
Model Number :
RS-907FK-R
Place of Origin :
China
Description

Resistor Forming Machine With Removing Tape Function

Intro:

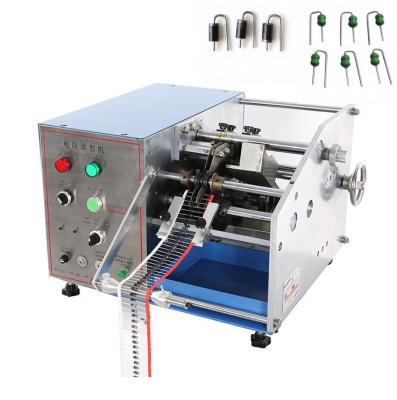

RS-907FK-R is for tape reel resistor/diode with short leads for preforming leads to vertical stand-up shape. It can remove the tape and use the leads inside the tape.

Machine working video:

https://youtube.com/shorts/LgABuXhA0Ug?si=51rJX4xu6oN859fw

Specification:

Model: RS-907FK-R
Voltage: AC 220V/110V 60Hz/50Hz
Dimensions: L580*W4450*H400MM
Weight: 70kg
Efficiency: 6000PCS/H


Features:


1. Suitable for forming and cutting axial parts such as mounted resistors and diodes.
2. Automatically removing the paper tape to solve the problem of insufficient pins.
3. Ultra-precision divider to complete forming and cutting at the same time.
4. Easy to adjust and stable quality.
5. The tool and mold are made of imported steel from Japan with a long service life.
6. The motor is a Taiwanese motor.
7. The mold can be customized according to customer requirements.
8. The steel plate of the equipment body is made of high-quality steel, which is strong and thick.
9. The blue spray paint on the surface is a special process and is not easy to scratch or fall off.

Short Leads Resistor&Diode Forming Machine With Removing Tape Function

Size FK Note
A Body length

3.8-10

10-20

 Two size can not be shared
B Body diameter 1.8-9 Adjustable
C Shoulder 2.5 Adjustable
D Span 5 Can be customized
E Lead kength Adjustable Adjustable
W Lead diameter

0.4-0.8mm

1.0-1.3mm

 Two size can not be shared
Unit: MM
