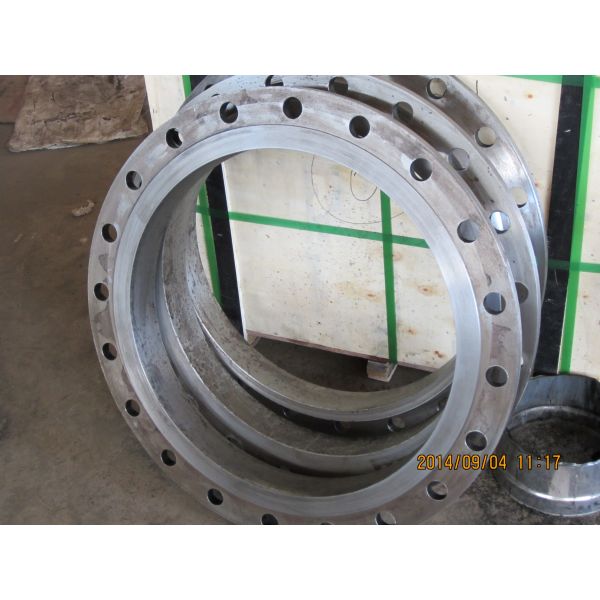

ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange
Specifications
Place of Origin :
Hebei,China
Brand Name :
RLY ASME B16.47 Series A/MSS SP-44 Class 900 BL
Certification :
ISO
Model Number :
ASME B16.47 Series A/MSS SP-44 Class 900BL
MOQ :
1 pc
Price :
1--10 USD/PCS
Packaging Details :
pallet,wood box,or according to clients' requiement
Delivery Time :
1-10 days receive your advance
Payment Terms :
T/T,L/C,
Supply Ability :
10000
Size :
26
Material :
Stainless Steel
Standard :
ANSI
Standard or Nonstandard :
Standard
Description

Hebei Ruoliyun Steel Pipe Sales Co.,ltd

ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange

ANSI B16.47 SERIES A CLASS 900 FLANGES DIMENSIONS TABLE

Nom Size

OD

Thickness

OD of RF

Dia at Base

Bore

LTH

Dia Bevel

Drilling

Weight

Weld Neck

Blind

Bolt Circle

Bolt Length

Hole Dia

# of Holes

Weld Neck

Blind

O

C

C

R

X

B

Y

A

-1

-2

26

42.75

5.5

6.31

29.5

30.5

11.25

26

37.5

18.75

2.88

20

1525

2566

28

46

5.62

6.75

31.5

32.75

11.75

28

40.25

19.75

3.12

20

1810

3178

30

48.5

5.88

7.18

33.75

35

12.25

30

42.75

20.5

3.12

20

2120

3758

32

51.75

6.25

7.62

36

37.25

13

32

45.5

22

3.38

20

2545

4541

34

55

6.5

8.06

38

39.62

13.75

34

48.25

23

3.62

20

2970

5425

36

57.5

6.75

8.44

40.25

41.88

14.25

36

50.75

23.75

3.62

20

3395

6209

38

57.5

7.5

8.5

43.25

42.25

13.88

38

50.75

24.5

3.62

20

3385

6253

40

59.5

7.75

8.81

45.75

44.38

14.31

40

52.75

25

3.62

24

3620

6940

42

61.5

8.12

9.12

47.75

46.31

14.62

42

54.75

25.75

3.62

24

3960

7675

44

64.88

8.44

9.56

50

48.62

15.38

44

57.62

27

3.88

24

4300

8954

46

68.25

8.88

10.06

52.5

50.88

16.18

46

60.5

28.5

4.12

24

4640

10426

48

70.25

9.19

10.38

54.5

52.88

16.5

48

62.5

29

4.12

24

4980

11398

Dimensions are in inches. Weights are in pounds.

(1)- Bolt lenghts are calculated based on bolting one WN to one Blind.
(2)- Bolt diameter should be 1/8" less than the bolt hole diameter

Size: DN15-- DN2000 (1/2"--80") Forged Flange

Material: Carbon steel : ASTM A105, A181, A350 LF1, A350LF2, A350LF3, A36, A234 WPB,

Stainless steel: ASTM A182 F304, F304L, F316, F316L, F321 etc

Model Number: ANSI B16.47 Series A Class 150 Flanges

Type: ANSI B16.47 Series A Class 150 Flanges

Standard: ANSI

Brand Name: RLY ANSI B16.47 Series A Class 150 Flanges

Flanges Anti Rust: Anti Rust Oil, Black Paint, Yellow Paint Coating, Hot Dipped Galvanized, Cold Galvanized etc.

Delivery Terms: CIF, CFR, FOB, One 20GP or 20FCL

Payment Terms: Wire Transfer (T/T), Irrevocable L/C at Sight.

Minimum Order Quantity: 10Pcs.

Sales Country and Region: More than 30 Countries and Areas.

ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange

ASME B16.47 Series A/MSS SP-44 Class 900 WN/BLforged flange

Contact : Ivy Tian

Skype: dstivy

WeChat : pipe-fitting

Mob: 0086 13313275738

Website: www.rlygy.com / www.rlygy.net

Email: rlypipe@hotmail.com admin@rlygy.com
