Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Discussible
Payment Terms :
TT
Supply Ability :
1000 unit per month
Delivery Time :
7-15 days
Packaging Details :
wooden box package
Product name :
Domestic 1T Capacity Pure Water Making Machine RO Plant Drinking Water Bottle
Type :
RO
Dimensions :
Depands on the capacity
Voltage :
380V
Pump :
CNP
Recovery rate :
≥50%-60%
Organic removal rate: :
≥98%
Capacity :
Make to order
Material :
SUS 304
Description

Domestic 1T Capacity Pure Water Making Machine RO Plant Drinking Water Bottle

NO. Device Description Origin / brand Quantity
1 Raw water pump(CHL2-40 SS304 ) CNP 1 Set
A. Flow: 2.0m3/H Head: 29m K = 0.55kw
B. Including: inlet valve, return valve, pipe fittings and so on
2 Sand filter CK-1465/Ф350X1650MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Automatic Valve F71B1 Runixn 1 Set
C. Top&bottom water distributor and center pipe 1 Set
3 Carbon filter CK-1465/Ф350X1650MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Automatic Valve F71B1 Runixn 1 Set
C. Top&bottom water distributor and center pipe 1 Set
4 5μm Cartridge filter CHUNKE 1 Set
A. Model: Ф195X500X5core material:ABS CHUNKE 1 Set
B. 20″×5μm PP filters China 5pcs
5 High pressure pump CDL2S-13 CNP 1 Set
A. Flow:2.0 m3/h Head:112m
B. Material:SS304 K=1.5KW
6 Reverse osmosis water production: 1m3/h, desalination rate:96～99%, System water utilization: ≥ 60% 1 Set
A. Membrane housing 4040-1core SS304 CHUNKE 4pcs
B. Membrane element 4040 Vontron 4pcs
C. 304 Stainless steel frame 1 Set
D. Water inlet solenoid valve 1PC
E. Strong water solenoid valve 1 Set
F. High pressure water inlet control valve 1PC
G. Concentrated water flow control valve 1 Set
7 Pipe fittings, valves U-PVC China 1 Set
8 Electronic control system CHUNKE 1 Set
Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller.
9 Filter Media China 1 Set
A. Quartz sand China 150KG
B. Activated carbon China 50KG
10 Pressure gauges China 1 Set
A. Reverse osmosis pressure gauge 0～25kgf/ cm2 China 2pcs
B. High pressure pump low pressure protection switch China 1PC
C. System pressure gauge 0～6kgf/ cm2 China 2pcs
D. Pure water conductivity meter China 1 Set
E. PC Program controller China 1 Set
11 Flowmeter Panel type(10GPM) China
A. One stage Pure water flowmeter(Panel type 10GPM) China 1 Set
B. One stage Strong water flowmeter(Panel type 10GPM) China 1 Set

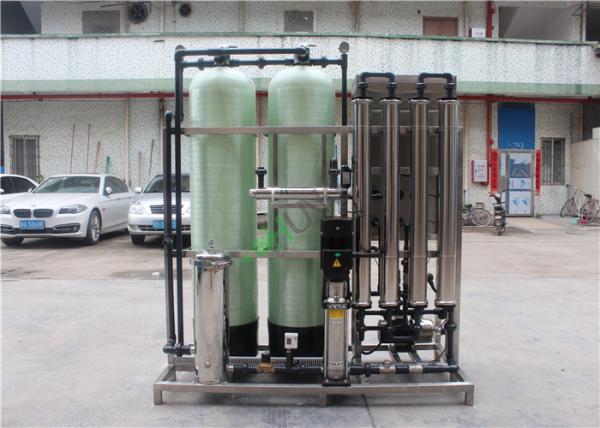

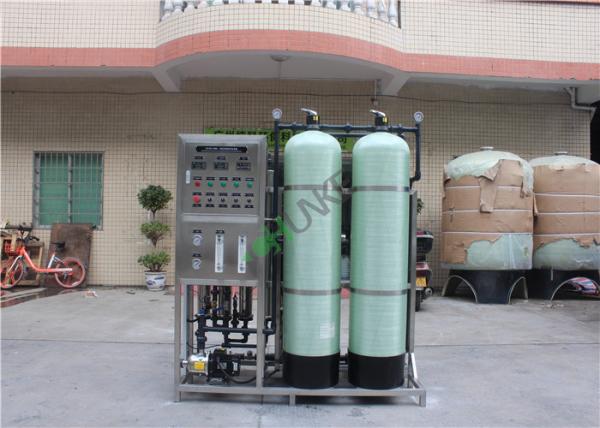

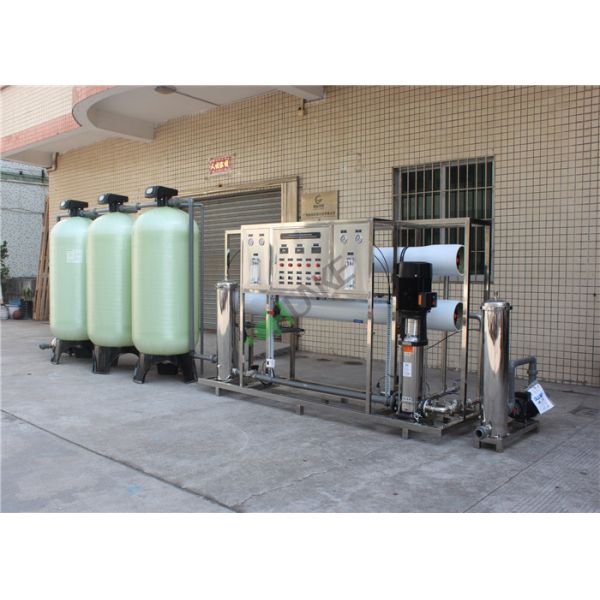

Detail Pictures :
Domestic 1T Capacity RO Water Treatment Plant Pure Water Making MachineDomestic 1T Capacity RO Water Treatment Plant Pure Water Making Machine
