100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
1000 unit per month
Delivery Time :
7-10 days
Packaging Details :
wooden box package
Item :
100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
Structure :
Filtering machine
Function :
Water Purification
Pump :
CNP\Ling Xiao\Grundfos
Recovery rate :
8%
Organic removal rate: :
≥98%
Capacity :
100L/ph
Material :
SS 304 ,SS 306 or FRP
Control System :
PC Control
Description

100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane

Reverse Osmosis Water Machine is suitable for the domestic water and the underground water. It can remove the ions and small molecular weight organic compounds, such as bacteria, viruses, such as pyrogen.
Reverse osmosis device is the raw water after quartz sand filter, activated carbon filter, softening filter, precision filter, etc., and then through the pressure pump, use the aperture for 1/10000 microns (1/6000 of 1/6000 of the size of e. coli, virus)

Typical industrial Reverse osmosis system as following:

1.Process: Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump-RO membrane host
Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet:Water TDS ≤ 10000ppm, water TDS ≤ 250ppm
Production Capacity: 0.1m³ per hour

Raw water quality: Salt water

Mainframe dimensions: 86*80*84CM, the total weight of about: 100Kg

Water treatment process flow diagram:

100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane

Model Capacity(L/H) Power(KW) RO Membrane Membrane pcs Size L*W*H(mm)
RO-250 250 2.0 4040 1 1900*700*1400
RO-500 500 2.0 4040 2 2250*700*1500
RO-750 750 2.5 4040 3 2600*700*1500
RO-1000 1000 2.5 4040 4 4000*900*1750
RO-2000 2000 3.5 4040 8 4750*900*1750
RO-3000 3000 4.5 8040 3 4850*900*1900
RO-4000 4000 6.5 8040 4 5500*800*1900
RO-5000 5000 8.0 8040 5 5500*900*2850

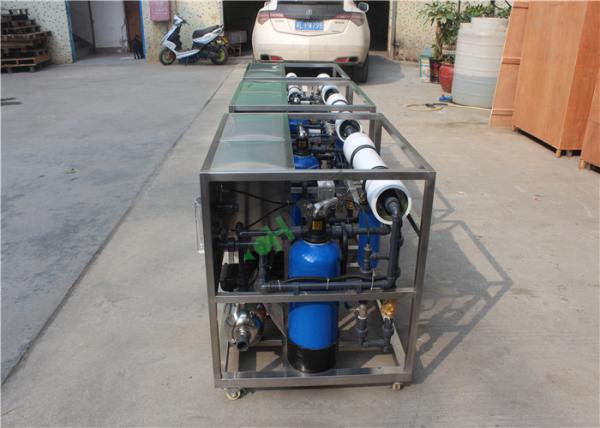

Detail Pictures :


100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane100LPH High Performance RO Water Treatment Plant with Toray / DOW RO Membrane
