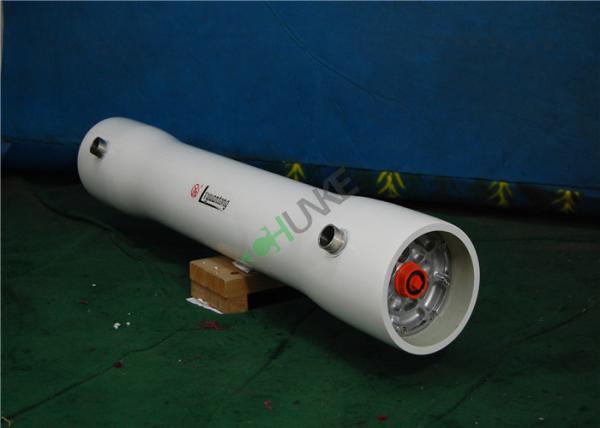

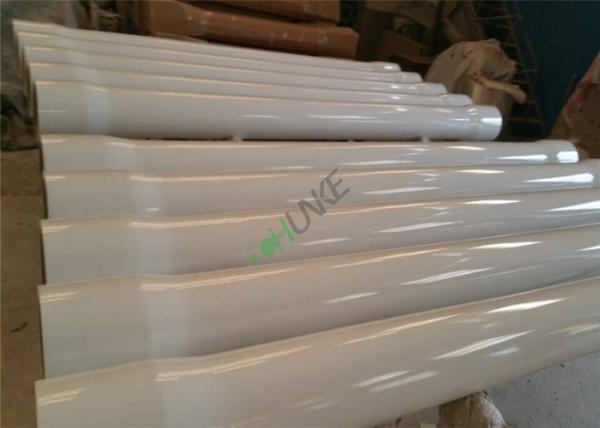

Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
Specifications
Brand Name :
Chunke
Model Number :
4040
Certification :
CE;ISO
Place of Origin :
Guangzhou, China
MOQ :
1 unit
Supply Ability :
1000 unit per month
Delivery Time :
7-15 working days
Packaging Details :
In wooden case or protection warp carton.
Membrane Size :
4040 / 8040
Working Temperature :
-7 to 49 C
Material :
Fiberglass composite
Working Pressure :
300 - 1000 psi
Connection :
End / Side
Color :
White Color
Application :
RO Unit
Name :
1000psi Ro Membrane Housing / 4040 Pressure Vessel Composite FRP Tube
Description

1000psi Ro Membrane Housing / 4040 Pressure Vessel Composite FRP Tube

☆ Composite Construction for Best Chemical Compatibility & Corrosion Resistance.

☆ Unique Mirror Finish ID.

☆ Smooth Inner Wall & Brightly Baking Surface.

☆ Length From 1 Element to 4 Elements.

☆ Adapters, Interconnectors & Mounting Clamps Available.

☆ Inlet & Outlet, Size & Quantity Can be Selected.

Technical Specification

Material: Fiberglass and epoxy.

Working Pressure: 150–1000 PSI.

Operating Temperature: -7 °C–49 °C.

Connection: End port, side port optional.

Operating pH Range: 3–11.

Cleaning pH Range: 2–12 (≤ 30 min).

Model

Pressure,

psi

 Connection Membrane Size Working Temperature
CK-4040-(1-4W)-300 300 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-450 450 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-600 600 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-800 800

Side

 4040 -7oC to 49oC
CK-4040-(1-4W)-1000 1000 Side 4040 -7oC to 49oC

Model

Pressure,

psi

 Connection Membrane Size Working Temperature
CK-4040-(1-7W)-150 150 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-300 300 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-450 450 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-800 800

Side

 8040 -7oC to 49oC
CK-4040-(1-7W)-1000 1000 Side 8040 -7oC to 49oC


Available Pressure Ratings (psi) 250/300/450/600/1000/1200
Lenght ( no. of elements) 1 To 7
Shell Material FRP
Shell Colour White
Feed / Reject Port
Size 1.5' (End Port) 1.5' / 2.0' /2.5 (Side Port)
Connection Groove
Material Ss 316 (Duplex SS for 1000 psi and above)
Permeate Port
Size 1
Connection Female NPT/ BSP
Material ABS
Head Assembly Retainer lock bars, cast aluminium bearing plates,
ABS seal plate and lock nut, head seal, permeate port o-ring
Adaptor Standerd 0. 125' OD adaptor is included
Straps & Saddles Depending on lenght
Max. Operating Temperature 50 c (122f)

Composite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure VesselComposite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure VesselComposite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure VesselComposite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure VesselComposite Ro Pressure Tube Water Treatment Plant Accessories 4040 Pressure Vessel
