High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
Specifications
Brand Name :
Chunke
Model Number :
4040 or 8040
Certification :
CE;ISO
Place of Origin :
Guangzhou, China
MOQ :
1 unit
Supply Ability :
1000 unit per month
Delivery Time :
7-15 working days
Packaging Details :
In wooden case or protection warp carton.
Membrane Size :
4040 / 8040
Working Temperature :
-7 - 49C
Material :
FRP composite
Working Pressure :
300 - 1000 psi
Connection :
End / Side
Color :
White Color
Application :
RO System
Name :
High Quality 4040/8040 Stainless Steel /FRP RO Membrane Pressure Vessel Housing for RO Water Treatment Plant
Description

High Quality 4040/8040 Stainless Steel /FRP RO Membrane Pressure Vessel Housing for RO Water Treatment Plant

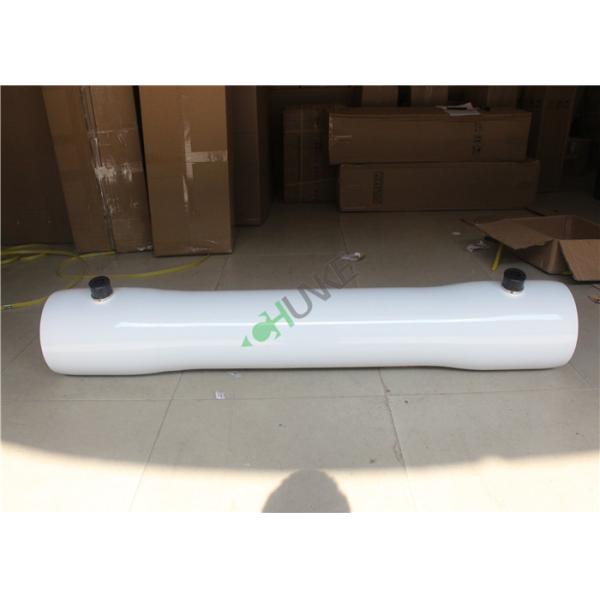

CHUNKE fiberglass housings are suitable for seawater conditions, rated at 1000 psi. The vessels use a strong coated fiberglass and feature machined, duplex end caps for extended life under corrosive conditions. The end caps are designed for direct connection to Applied Membranes and FilmTec/DOW 2.5” standard, male style elements.

Benefits

  • Strong coated FRP/fiberglass and feature machined, duplex end caps for extended life under corrosive conditions

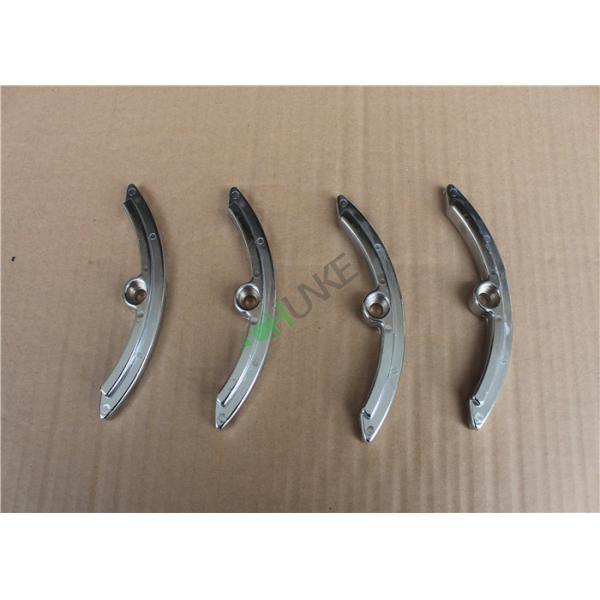

  • Stainless Steel End Plate, Securing Ring, Locking Kit and Screws
  • Suitable for corrosive seawater conditions
  • Designed for ease of installation and maintenance
  • Ideal for operating pressures up to 1,000 PSI
  • CHUNKE has been manufacturing Water Filtration Components for over 10 years
  • CHUNKE Products have earned an industry-wide reputation for their high quality and superior performance
  • Individually inspected

Model

Pressure,

psi

 Connection Membrane Size Working Temperature
CK-4040-(1-4W)-300 300 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-450 450 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-600 600 Side 4040 -7oC to 49oC
CK-4040-(1-4W)-800 800

Side

 4040 -7oC to 49oC
CK-4040-(1-4W)-1000 1000 Side 4040 -7oC to 49oC

Model

Pressure,

psi

 Connection Membrane Size Working Temperature
CK-4040-(1-7W)-150 150 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-300 300 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-450 450 Side 8040 -7oC to 49oC
CK-4040-(1-7W)-800 800

Side

 8040 -7oC to 49oC
CK-4040-(1-7W)-1000 1000 Side 8040 -7oC to 49oC

Features

  • 1000 PSI Maximum Pressure
  • End-Entry
  • Available for membrane elements in 14”, 21” and 40” lengths
  • Materials: Strong coated FRP/fiberglass and feature machined, duplex end caps for extended life under corrosive conditions.
  • Stainless Steel End Plate, Securing Ring, Locking Kit and Screws.
  • For Direct Connection to CHUNKE / FilmTec style membranes
  • Easy to install and maintain

High Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless SteelHigh Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless SteelHigh Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless SteelHigh Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless SteelHigh Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless SteelHigh Pressure Vessel FRP RO Membrane Housing 4040/8040 Stainless Steel
