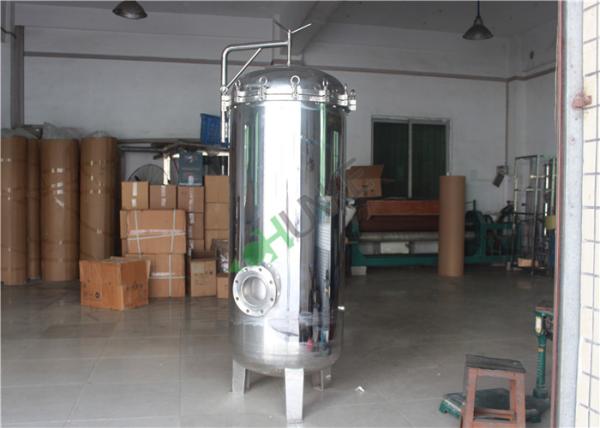

Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
Specifications
Brand Name :
Chunke
Certification :
ISO and CE
Place of Origin :
Guangzhou
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
860 pcs per month
Delivery Time :
7-15 working days
Packaging Details :
In wooden box with protection warp material
Model Number :
CK-CF
Product Name :
Popular High Quality Cheap Stainless Steel Multi-Cartridge Filter Housing For RO System Purification
Thickness :
1.50-3.00mm
Capacity :
Every capacity is available
Diameter, mm :
100 - 1500mm
Flow rate, T/H :
Changable
Usage :
Filtering
Color :
Mirror Gloss
Material :
Stainless Steel
Application :
Water Treatment
Description

Popular High Quality Cheap Stainless Steel Multi-Cartridge Filter Housing For RO System Purification

CHUNKE cartridge filter housing also called cartridge filter vessel, offers a complete line of single cartridge filter housings and multi-cartridge filter housings for use in the clarification, sterilization and high-efficiency filtration of liquids and gases.
CHUNKE cartridge filter housing can be custom manufactured with the widest range of sizes, material and cartridge filter housing design options to exactly match your flow rate, pressure rating and holding volume requirements, including 304 and 316 stainless steel cartridge filter housing, industrial cartridge filter housings, sock filter housing, single cartridge filter housing, multi cartridge filter housing.
Ask for a quick quote on CHUNKE Cartridge filter housing now!
CHUNKE Cartridge Filter Vessel
CHUNKE cartridge filter housings can fit DOE, Type 222, or Type 226 filter cartridges in 10-inch, 20-inch, 30-inch, 40-inch or 60-inch lengths.
Compared to other cartridge filter housing manufacturers, CHUNKE industrial cartridge filter housings delivery end-users a large variety of cartridge filter design choices for chemical compatibility and increased particle retention. CHUNKE cartridge filter housings are ideal using in chemical systems, commercial RO and membrane water treatment systems, pharmaceuticals, cosmetics, food & beverage, industrial facilities…
With the CHUNKE’s know how in cartridge filter housing industry, we can help you save costs and remain competitive by being your OEM partner for stainless steel filter housing.
Whether for standard, custom or different thickness, CHUNKE cartridge filter housings provide a high quality solution for all market needs.
CHUNKE Single Cartridge Filter Housings are rugged, lightweight and low in cost to provide economical filtration of a wide variety of liquids.
It features a ring-nut closure, clamp closure or bolt closure with a standard O-ring for quick, easy cartridge change-outs and secure sealing.
CHUNKE single cartridge filter housing configurations include inline, T-type, L-type and open types.
Flexible connections and adjustable-height legs allow the end-user to easily install the housings to new or existing limited space.
Wall mounting brackets are available as well.
CHUNKE single cartridge filter housings are sold ready to install with all gaskets, o-rings and parts.
And it allows fully access all cartridge filter vessel internal surfaces for easy cleaning with ss filter housing complete disassembly possibility.
Features of CHUNKE Cartridge Filter Housing
Stainless steel 304, 316, 316 L construction
Crevice-free welding provide a smooth interior for easy cleaning
Standard features include vent, gauge ports, clean drain & dirty drain connections
T-Port/ In-Line/ Open/ L-Port choices for single cartridge filter housing
Flanged or threaded connection for multi cartridge filter housings
Duplex are available for continual operation
Minimal pressure losses due to optimized flow patterns
Cartridge filter housing has a universal top seal plate for cup, spring or fin style tops
Machined cover gasket groove provides positive O-ring sealing
Each cartridge filter housing get through factory hydro-tested
Custom possibilities for high-pressure/hot water applications
Single unit disassembly for easy cleaning and cartridge replacement.
All parts (except o-ring) can be made of stainless steel for strength, durability and chemical compatibility
Polished or sandblast exterior and pickle passivate interior / exterior for enhanced corrosion resistance
Mirror Gloss Stainless Steel Cartridge Filter Housing RO System PurificationMirror Gloss Stainless Steel Cartridge Filter Housing RO System PurificationMirror Gloss Stainless Steel Cartridge Filter Housing RO System PurificationMirror Gloss Stainless Steel Cartridge Filter Housing RO System Purification
