Product description

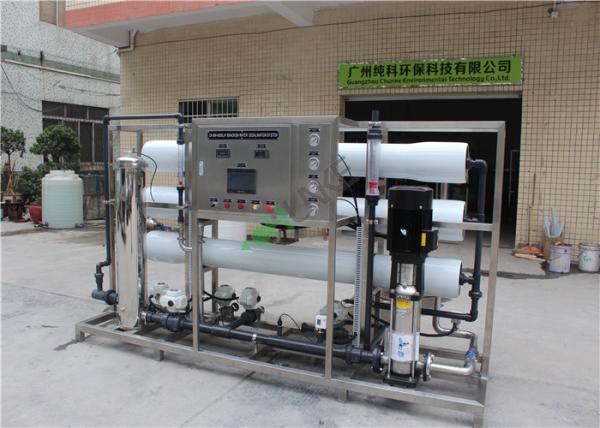

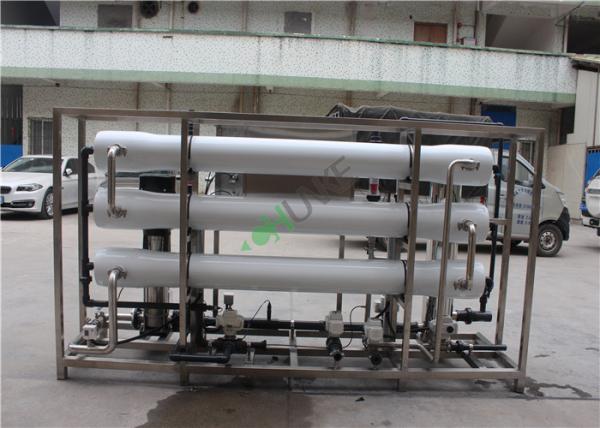

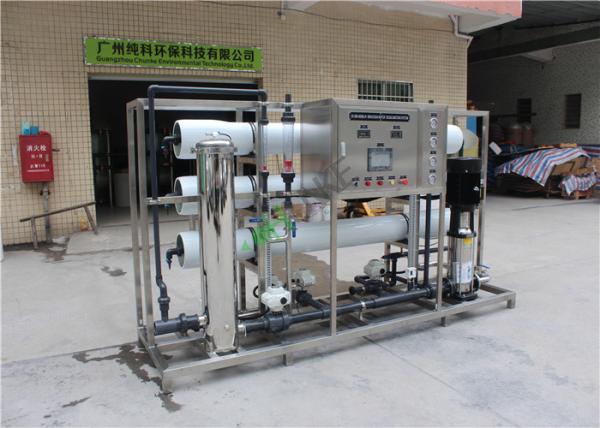

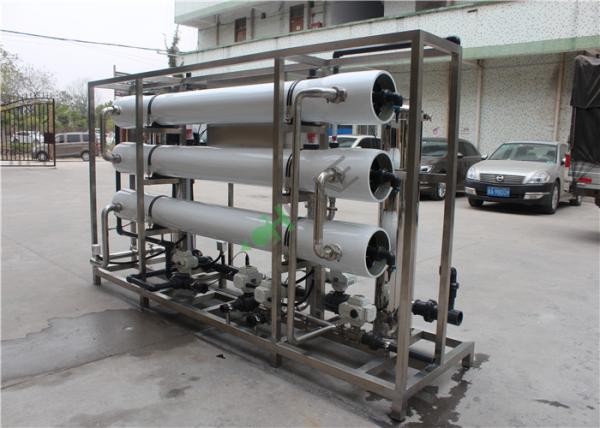

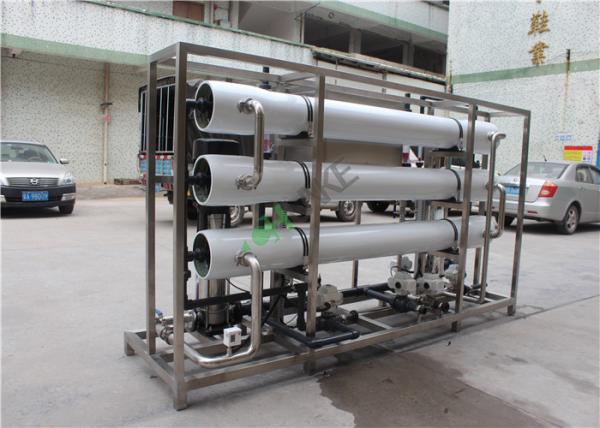

Water treatment system plant
1.DOW, Hydranaustic Membrane
2.Automatic wash and backwash
3.Low operation cost

Product application:
food,dairy,beverage,biology and pharmacy,boiler,brewing,electronic,electric appliance,electroplate,leather,printing and dying,painting and dying,paint,chemical industrial,surface treatment etc,supply water treatment production line and all other industrial equipment of de-ion water

Advantages :
Low power consumption, completely made of 304 stainless steel, the pretreatment equipment and pipeline valve are all sanitary material, conpact conformation, convenient to tranport. No need works to operate. It is PLC program controlled. Installed with conductivity meter monitor,pressure gauge and flow meter.

Matching equipment:
original water pump,mechanical filter,activated carbon filter,ultrafilter high pressure pump, RO systems ,cleaning system, high and low pressure protection system ,automatic liquid level control system ,automatic alarm system ,automatically stop when the water tank is full, automatically run when the water tank is empty.
Working principle:
Reverse osmosis technology
With the report of raw water analysis and the different requirements in different field, we can make a appropriate design for you.
1) Adopts RO membrane from VONTRON, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and refined quartz sand filter
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional)
7) The lifespan of the whole system is long, operation simple, the applicability is strong
