Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Discussible
Payment Terms :
TT
Supply Ability :
1000 unit per month
Delivery Time :
7-15 days
Packaging Details :
wooden box package
Product :
Ro Water Treatment Plant / River Water Purification System For Commercial Complexes
Power :
1.4KW
Frame Material :
SUS304
UV :
It's ok
Brand name :
Chunke
Usage :
Drinking and so on
Warranty :
1 year
Application :
Food and so on
Product type :
Reverse osmosis
Description

Ro Water Treatment Plant / River Water Purification System For Commercial Complexes

CK-RO-500L(A1)One stage Reverse osmosis water equipment configuration

NO. Device Description Origin/brand Quantity
1 Raw water pump(CHL2-30 SS304 ) CNP 1 Set
A. Flow: 1.0m3 / H Head: 27m K = 0.37kw
B. Including: inlet valve, return valve, pipe fittings and so on
2 Sand filter φ300×1320mm CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve F56A Runixn 1 Set
C. Top&bottom water distributor and center pipe 1 Set
3 Carbon filter φ300×1320mm CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve F56A Runixn 1 Set
C. Top&bottom water distributor and center pipe 1 Set
4 5μm Cartridge filter CHUNKE 1 Set
A. Model:1core material:ABS CHUNKE 1 Set
B. 20″×5μm PP filters China 1pcs
5 One stage High pressure pump CDL2S-11 CNP 1 Set
A. Flow:1.0m3/h Head:98m
B. Material:SS304 K=1.1KW
6 Reverse osmosis water production: 0.5m3/h, desalination rate:96～99%, System water utilization: ≥ 60% 1 Set
A. Membrane housing 4040-1core SS304 CHUNKE 2pcs
B. Membrane element 4040 Vontron 2pcs
C. 304 Stainless steel frame 1 Set
D. Inlet water valve DN20 SS304 1PC
E. Strong water valve DN15 1 Set
F. Inlet water flow adjustable valv DN25 1PC
G. Strong water flow adjustable valveDN20 1 Set
7 Pipe fittings, valves U-PVC China 1 Set
8 Electronic control system CHUNKE 1 Set
Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller.
9 Filter Media China 1 Set
A. Quartz sand China 50KG
B. Activated carbon China 25KG
10 Pressure gauges China 1 Set
A. Reverse osmosis pressure gauge 0～25kgf/ cm2 China 2pcs
B. High pressure pump low pressure protection switch China 1PC
C. System pressure gauge 0～6kgf/ cm2 China 2pcs
D. Pure water conductivity meter China 1 Set
E. PC Program controller China 1 Set
11 Flowmeter Panel type(5GPM) China
A. One stage Pure water flowmeter(Panel type 5GPM) China 1 Set
B. One stage Strong water flowmeter(Panel type 5GPM) China 1 Set

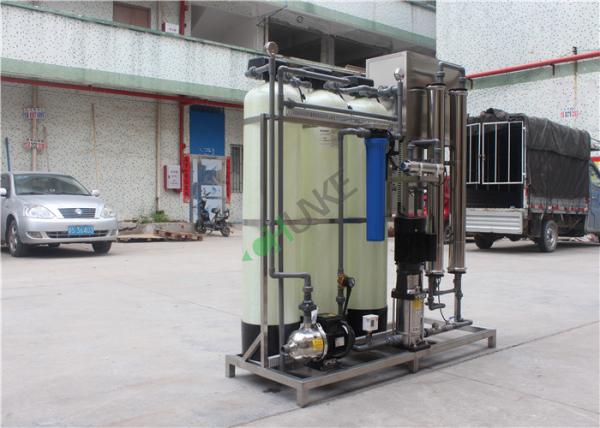

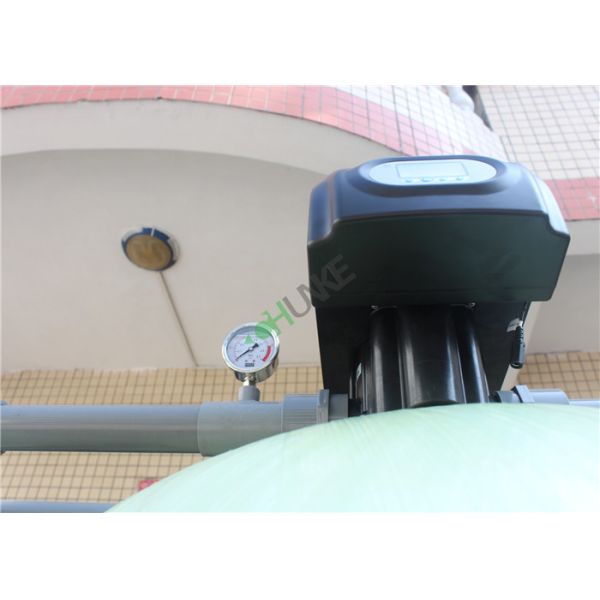

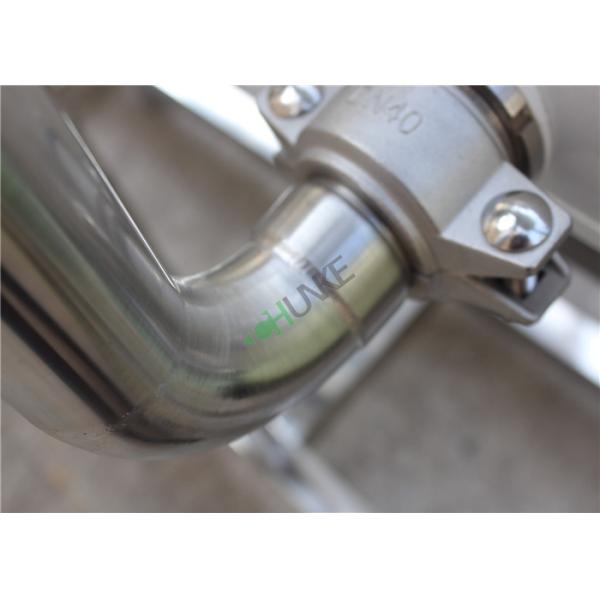

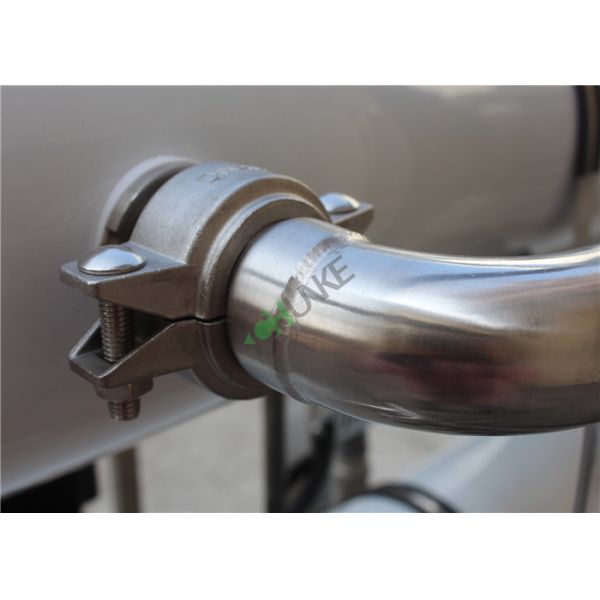

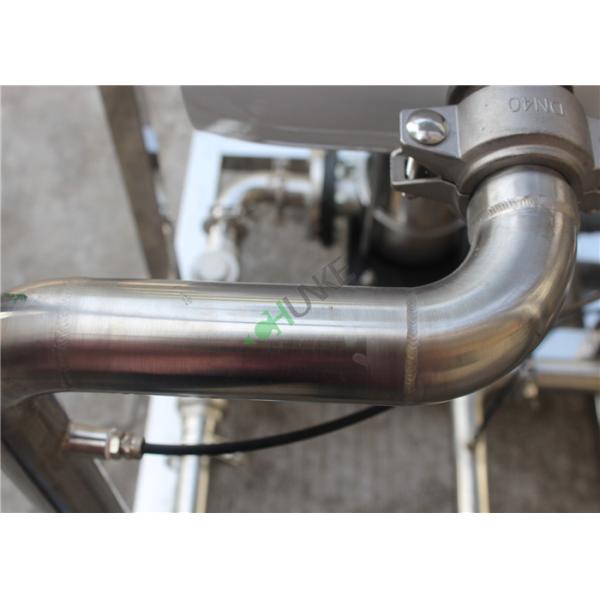

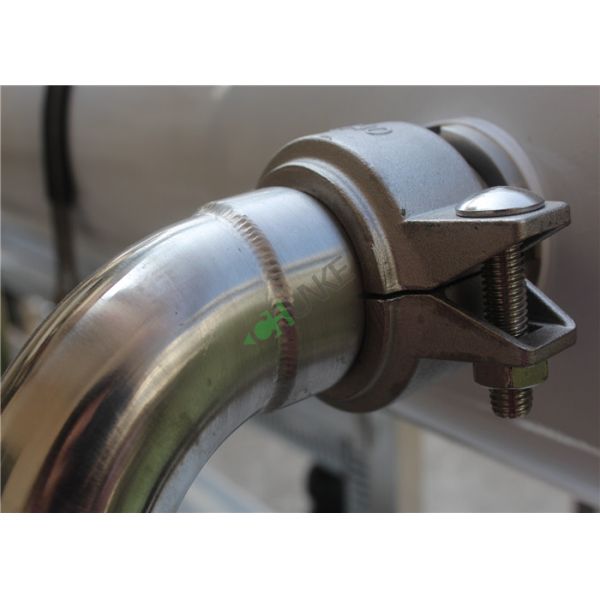

Reverse osmosis water equipment Detail Pictures :


Ro Water Treatment Plant / River Water Purification System For Commercial ComplexesRo Water Treatment Plant / River Water Purification System For Commercial ComplexesRo Water Treatment Plant / River Water Purification System For Commercial ComplexesRo Water Treatment Plant / River Water Purification System For Commercial ComplexesRo Water Treatment Plant / River Water Purification System For Commercial Complexes
