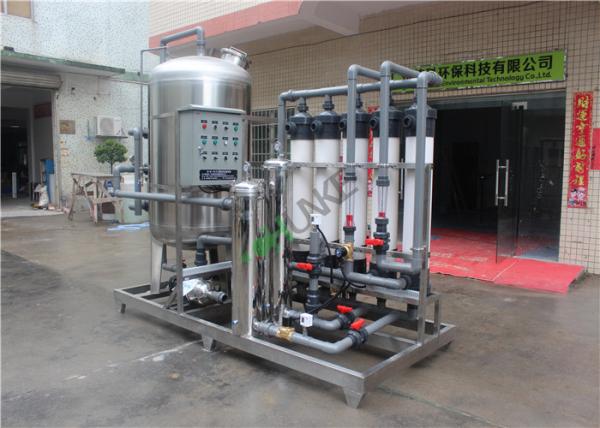

Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
Specifications
Brand Name :
Chunke
Model Number :
CK-UF
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-10 days
Packaging Details :
Standard package
Item :
Stainless Steel Ultrafiltration Membrane System For Laboratory
Capacity :
10T
Model :
CK-UF
Application :
Waste Water Treatment System
Control System :
PLC Control
Precision graderate :
0.1 um-100 um
Membrane :
DOW\Vontron\TORAY
Organic removal rate: :
≥98%
Material :
SS or FRP
Processing :
5 stage
Description

Stainless Steel Ultrafiltration Membrane System For Laboratory ​

Description:


1. Quartz sand filter-- Quartz sand ,we use natural high quality quartz ore as raw material, fast filtration speed, no mixing layer, good filtering effect, stable effluent quality, non clogging, non caking.


2. Active carbon filter--Active carbon:Our active carbon pore structure developed, the specific surface area, adsorption performance, the library layer of small force, chemical stability.

3. High pressure pump: provide enough pressure for reverse osmosis system ,provide the high pressure to RO membrane

4. Multi-media filter :The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.

Main technical parameters:


Scope of application:TDS=35000mg/L
The effluent quality:TDS=600mg/L Meet the World Health Organization (WHO)guidelines for drinking water quality or according to customers demand a separate design.
Rate of recovery:40%-50%
Adaptation to seawater temperature:5.0~30.0 Celsius degree

Products Description:
The UF System filtration process which utilizes trans-membrane pressure differential to separate particles according to molecular weights. It is used to remove high molecular-weight substances, colloidal materials, and bacteria, organic and inorganic polymeric molecules.

Feature of uf waste water treatment plant:
Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%
Product Name
CHUNKE Small Mineral Water Plant 250L/H UF System drinking Water
Material
stainless steel 304
Craft
UF system
Pretreatment tank material
FRP
Frame Material
SS304
Valve
Manuel
Pump
CNP
Used
Waste Water treatment

More Pictures :

Stainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um PrecisionStainless Steel Ultrafiltration Membrane System For Laboratory 0.1 um-100 um Precision
