15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
Specifications
Brand Name :
CHUNKE
Model Number :
CK-UF
Certification :
CE.ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-15 days
Packaging Details :
Standard package
Name :
Fully automatic drinking water filtration machine UF system Ultrafiltration
Material :
FRP ss304
Consumable :
Carbon , PP Cartridge .
Cartridges :
PP Filter Cartridge
Flow Rate :
15000L
Warranty :
1 years
Description

Fully automatic drinking water filtration machine UF system Ultrafiltration

1. System description


The Industrial water UF filter machine can be used in pretreatment and post treament, It has automatic function to collect water and back wash, so it wil reudce the frenquency of RO system cleaning and disinfection, it's more stable compared with multimedia filter, in the pretreatment, it can absorb and remove the suspended particles, organic colloid, in the water, and it helps to reduce the TOC in the water.

2. Features:

1 Barrier filtration, normal pore size of 0.01 μm,
2 Removal of suspended solids (turbidity) or micro-organisms.
3 Removal of organics up to 99%
4 Fully automated operation - PLC control
5 No need for chemicals (coagulants, flocculates, disinfectants, pH adjustment)
6 Pretreatment application for brackish and seawater desalination

3. Matching equipment:


original water pump,mechanical filter,activated carbon filter,ultrafilter high pressure pump, UF systems ,cleaning system, high and low pressure protection system ,automatic liquid level control system ,automatic alarm system ,automatically stop when the water tank is full, automatically run when the water tank is empty.

4. What is ultrafitration ?

Ultrafiltration is a purification, separation or concentration of semipermeable membrane in separation techniques for solution. After more than 20 years rapid development, it has become one of the widest techniques in membrane separation field. It widely uses in food and beverage, chemical electron, biological construction for environmental protection, etc.

5. ltrafiltration membrane

Ultrafiltration membrane is the anisomerous semipermeable membrane made of macromolecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic,bacterium,virus,colloid and non-ion suspended solid.

6. Working Flow

Raw Water →Raw water pump→ sand filter→carbon filter→water softener→security filter→High-pressure pump→ UF system→ pure water tank

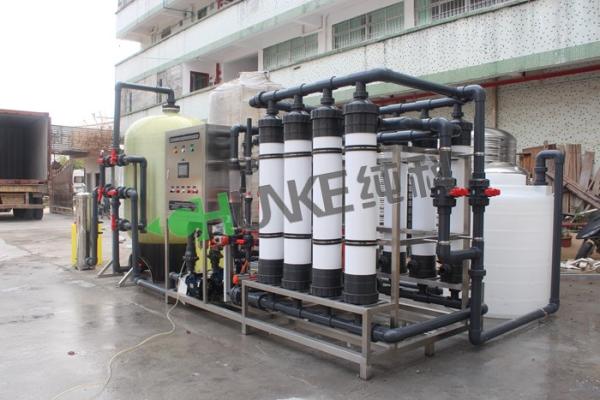

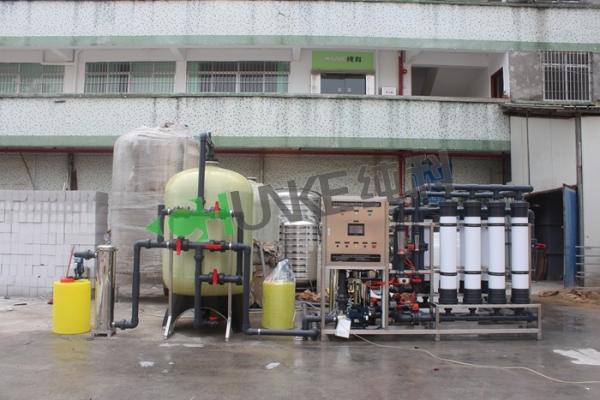

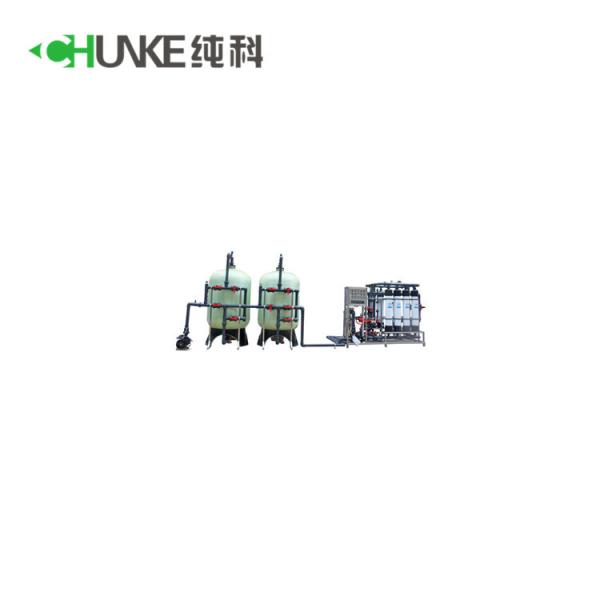

7. UF system detail picture

15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty15000L Drinking Water Filtration Machine UF System Ultrafiltration 1 Year Warranty
