Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Commercial Drinking 1m³ Per Hour RO Pure Water Machine
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
TT
Supply Ability :
20 units per month
Delivery Time :
30 days
Packaging Details :
wooden box package
Item :
Professional manufacturer of commercial drinking RO pure water machine
Raw Water :
Tap Water， underground water, normal water
Usage :
Drinking irrigation chemical medicine
Output :
1m³ per hour
Material :
SS304
Raw water :
Underground , tap water , river water and so on .
Certificate :
CE, SGS
Brand :
CHUNKE
Description

Professional manufacturer of commercial drinking RO pure water machine

What' s reverse osmosis system?

Reverse osmosis is the most advanced and effective desalting technology. The principle is that under the higher pressure more than the dissolved solution osmotic pressure. Only follow water molecules through the reverse osmosis membrane. Then the solute and solvent separated, thereby getting the purified water. The fine particles, colloid, organic matter, bacteria, virus and 99%the dissolved salt can be removed by the water quality stability etc. already widely used in electronic, electrical, pharmaceutical, food and other fields.

What's the working principle of the RO membrane for the reverse osmosis system?

The spiral membrane is constructed of one or more membrane envelopes wound around a perforated central tube. The permeate passes through the membrane into the envelope and spirals inward to the central tube for collection.

Working process of RO system:

Raw water pump→ mechanical filter→ activated carbon filter→ sodium-ion exchanger→ precision filter→
high pressure pump →Reverse osmosis→ Ozone sterilizer (UV).

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.

2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.

3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump--Provide the high pressure to RO membrane.

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

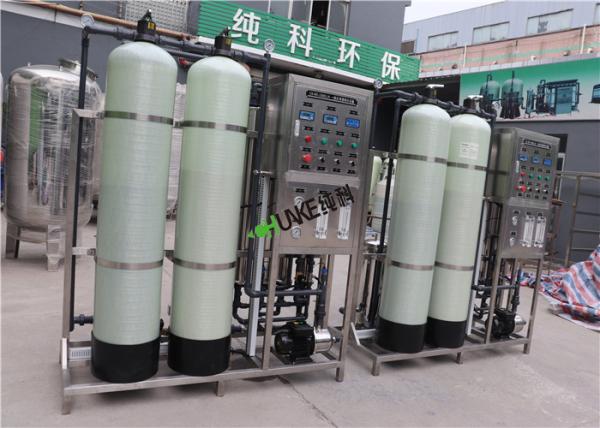

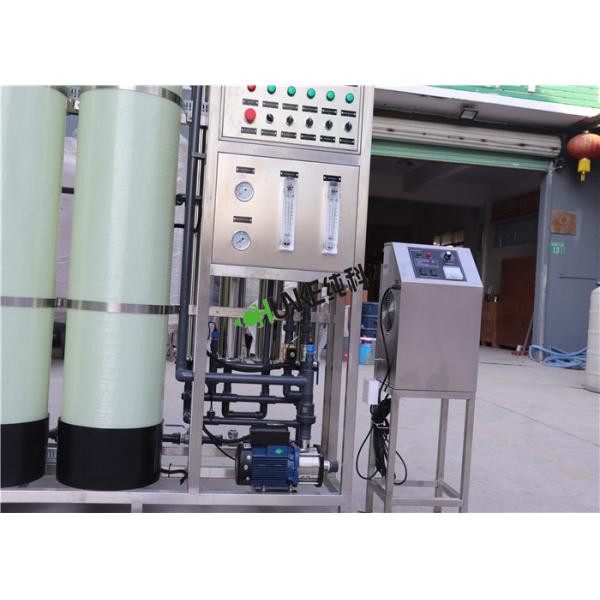

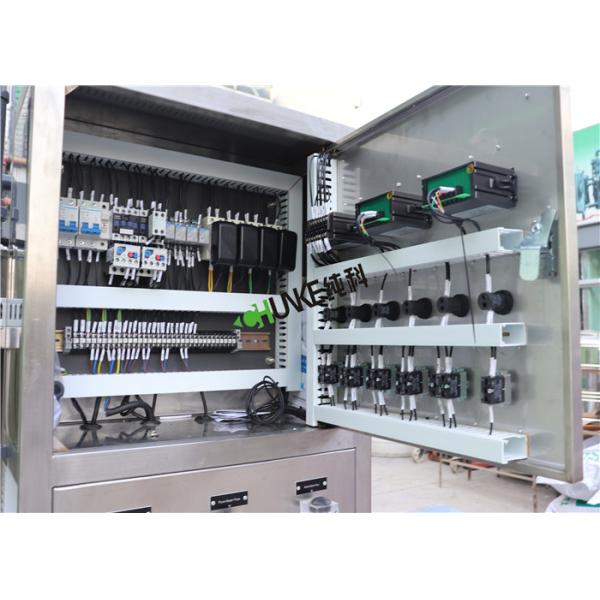

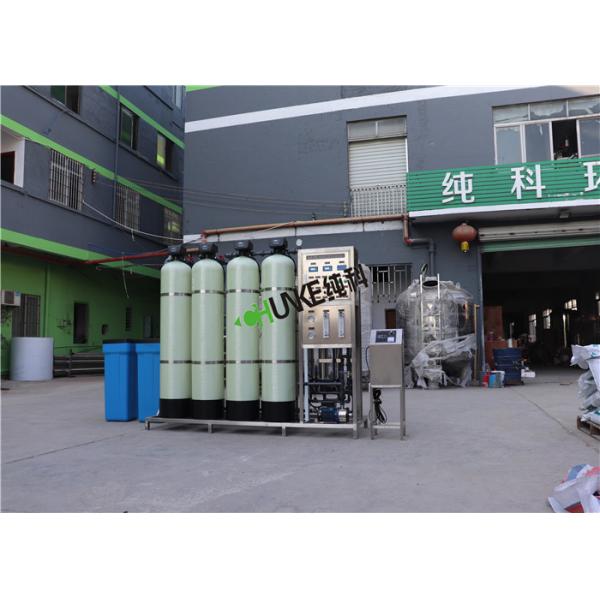

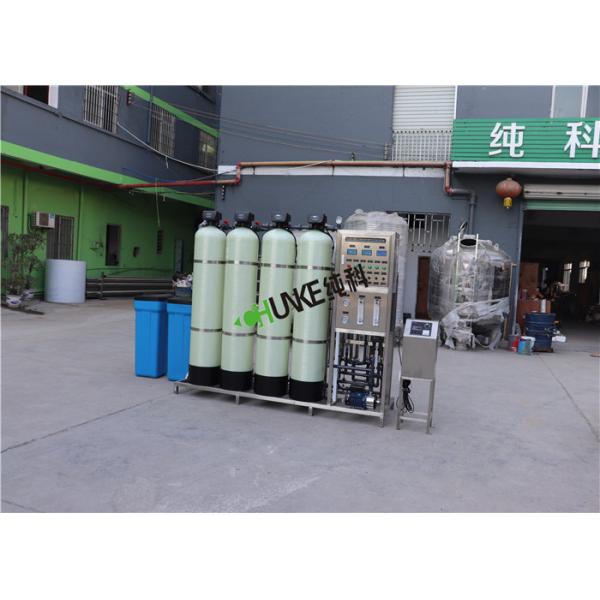

RO System Pictures

Commercial Drinking 1m³ Per Hour RO Pure Water MachineCommercial Drinking 1m³ Per Hour RO Pure Water MachineCommercial Drinking 1m³ Per Hour RO Pure Water MachineCommercial Drinking 1m³ Per Hour RO Pure Water Machine
